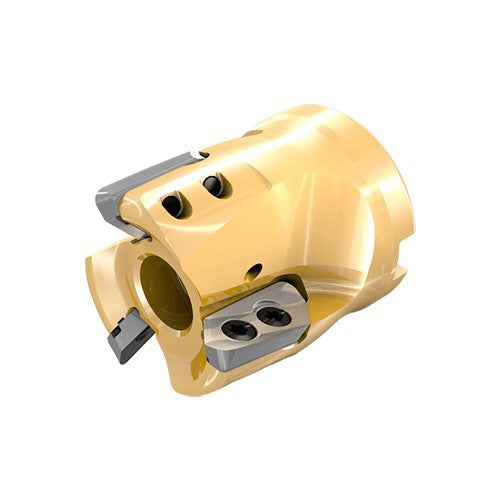

HSM90S FAL-D050-3-22-22
Item #: EH313321535
Brand: Iscar
Model #: 3321535
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 50 mm |
| Master Insert Identification (MIID) | HSM90S APCR 2207 |
| Cutting Diameter (DC) | 50 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 3 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 22 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 57 mm |
| Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A |
