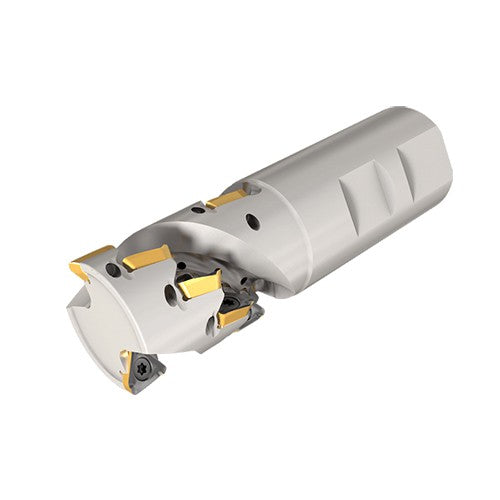

HM390 TPK D25-28-2-W25-10
Item #: EH313107272
Brand: Iscar
Model #: 3107272
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 25 mm |
| Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 25 mm |
| Functional Length (LF) | 63 mm |
| Cutting Item Count (CICT) | 8 |
| Tool Type | 90° Extended flute shell mill |
| Depth of Cut Maximum (APMX) | 28 mm |
| Flute Count (NOF) | 2 |
| Overall Length (OAL) | 95 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Weldon |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Shouldering | |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | HM390 TPKT 1003 |
| Body Material | Steel |
| Weight of Item (WT) | 0.3 kg |
| Connection Code Machine Side (CCMS) | Weldon |
