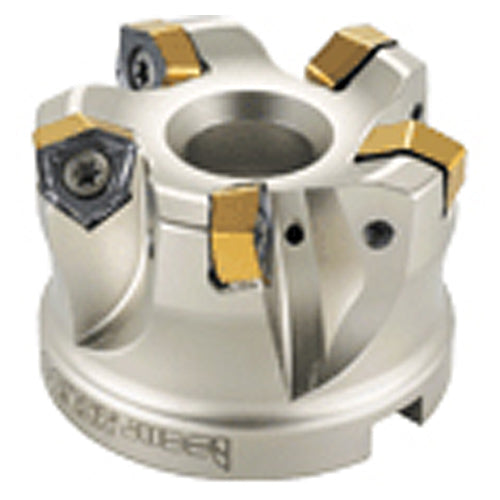

FF FWX D080-06-31.750-08
Item #: EH313105253
Brand: Iscar
Model #: 3105253
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 80 mm |
| Master Insert Identification (MIID) | H600 WXCU 080612T |
| Cutting Diameter (DC) | 64 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter Maximum (DCX) | 80 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 6 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2 mm |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 63 mm |
| Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Hub Diameter (DHUB) | 76 mm |
| Tool Type | Fast Feed Face mill |
| Arbor Style | A |
