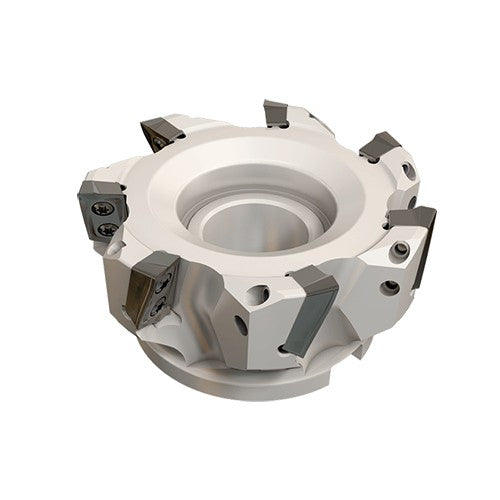

HP F90AT D63-4-25.4-22
Item #: EH313103115
Brand: Iscar
Model #: 3103115
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 63 mm |
| Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 63 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 4 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 21 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm |
| Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm |
| Measurement Type | Metric |
| Hub Diameter (DHUB) | 59.2 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A |
| Tool Type | 90° Facemills |
