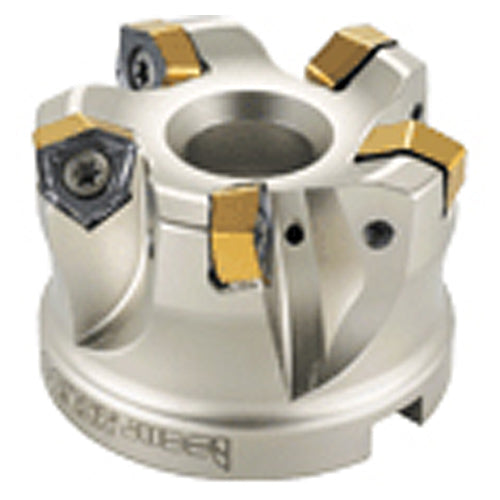

MF FWX D080-07-32-07
Item #: EH3107279
Brand: Iscar
Model #: 3107279
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 80 mm |
| Arbor Style | A |
| Cutting Diameter (DC) | 67.7 mm |
| Master Insert Identification (MIID) | H600 WXCU 070515HP |
| Cutting Diameter Maximum (DCX) | 80 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 7 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 2.7 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 55 mm |
| Measurement Type | Metric |
| Hub Diameter (DHUB) | 76 mm |
| Tool Type | Fast Feed Face mill |
