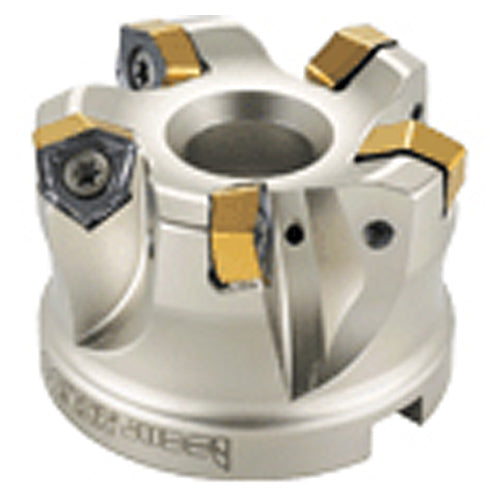

FF FWX D100-08-32-07
Item #: EH3107276
Brand: Iscar
Model #: 3107276
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 100 mm |
| Master Insert Identification (MIID) | H600 WXCU 070515HP |
| Cutting Diameter (DC) | 87 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter Maximum (DCX) | 100 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 8 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.5 mm |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 50 mm |
| Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Hub Diameter (DHUB) | 78 mm |
| Tool Type | Fast Feed Face mill |
| Arbor Style | B |
