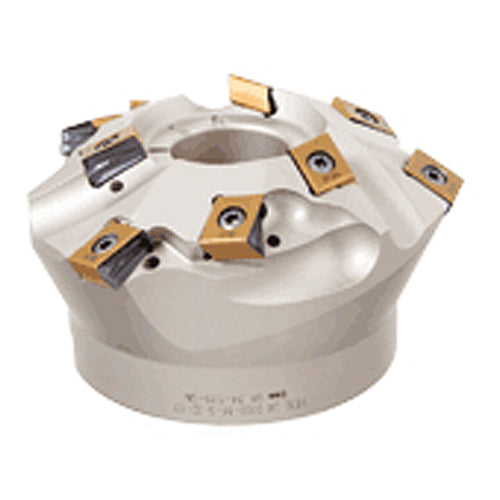

T475 SM-D050-34-3-27-13
Item #: EH3107226
Brand: Iscar
Model #: 3107226
| Product Specifications | |
|---|---|
| Application | | Facing | Slanted Shoulder & Chamfer | |
| Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Cutting Item Count (CICT) | 9 |
| Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 34.5 mm |
| Arbor Style | A |
| Cutting Diameter (DC) | 50 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 60 mm |
| Cutting Diameter Maximum (DCX) | 68.6 mm |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Overall Length (OAL) | 55 mm |
| Body Material | Steel |
| Cutting Depth | 34.5 mm |
| Tool Type | 45° Facemills |
