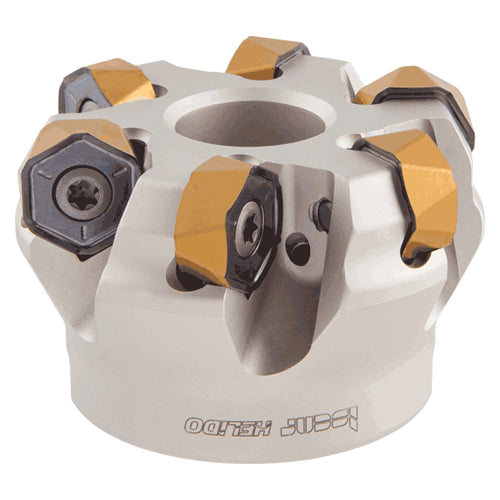

MF FHX D160-13-40-R06
Item #: EH3107207
Brand: Iscar
Model #: 3107207
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 162.4 mm |
| Master Insert Identification (MIID) | H1200 HXCU 0606-HPR |
| Cutting Diameter (DC) | 150.4 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 162.4 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 13 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 3 mm |
| Application | | Facing | Fast Feed Milling | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 55 mm |
| Tool Cutting Edge Angle (KAPR) | 34 Degrees |
| Hub Diameter (DHUB) | 95 mm |
| Tool Type | 45° Facemills |
| Arbor Style | C |
