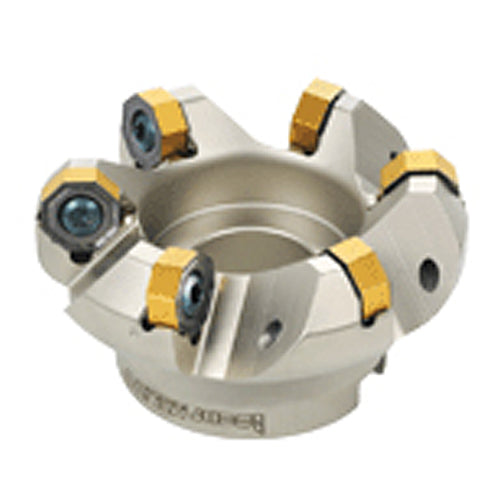

SOF45 8/16-D080-10-25.40R
Item #: EH3105674
Brand: Iscar
Model #: 3105674
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 88 mm |
| Master Insert Identification (MIID) | ONHU 050500-PL |
| Cutting Diameter (DC) | 80 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 88 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 10 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.9 mm |
| Application | | Facing | Profiling | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 51.6 mm |
| Tool Cutting Edge Angle (KAPR) | 44 Degrees |
| Hub Diameter (DHUB) | 70 mm |
| Tool Type | 45° Facemills |
| Arbor Style | B |
