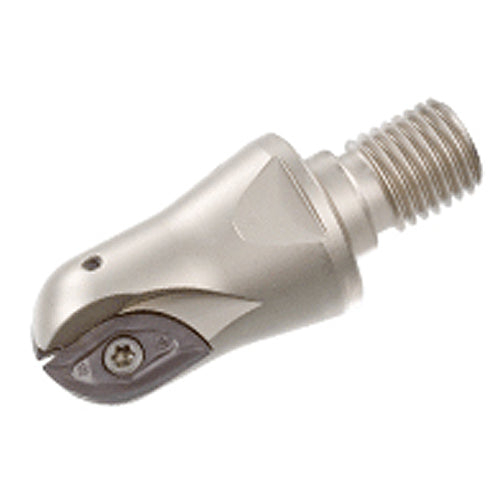

BCM D25-M12
Item #: EH3105390
Brand: Iscar
Model #: 3105390
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 25 mm |
| Tool Type | Ball nose endmills |
| Cutting Diameter (DC) | 25 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Item Count (CICT) | 2 |
| Drive Size (DRVS) | 19 mm |
| Depth of Cut Maximum (APMX) | 20 mm |
| Corner Radius (RE) | 12.5 mm |
| Overall Length (OAL) | 68 mm |
| Front Type | A |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 23 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | BCR D250-QT |
| Body Material | Steel |
| Weight of Item (WT) | 0.12 Kg |
| Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 46 mm |
