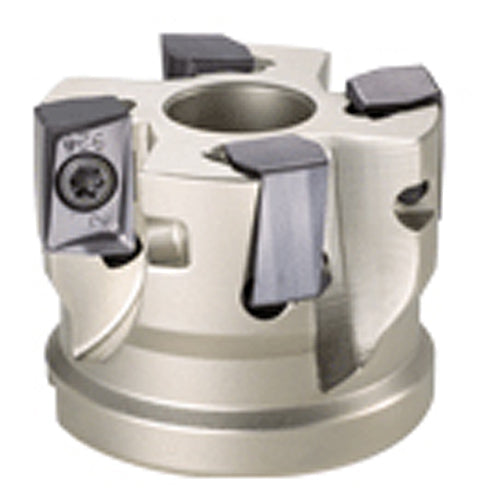

H490 F90AXD100-8-31.75-17
Item #: EH3104634
Brand: Iscar
Model #: 3104634
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 100 mm |
| Arbor Style | B |
| Cutting Diameter (DC) | 100 mm |
| Master Insert Identification (MIID) | H490 ANKX 170604PNTR |
| Cutting Diameter Maximum (DCX) | 100 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 8 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 16.3 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm |
| Application | | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm |
| Measurement Type | Metric |
| Hub Diameter (DHUB) | 80 mm |
| Tool Type | 90° Facemills |
