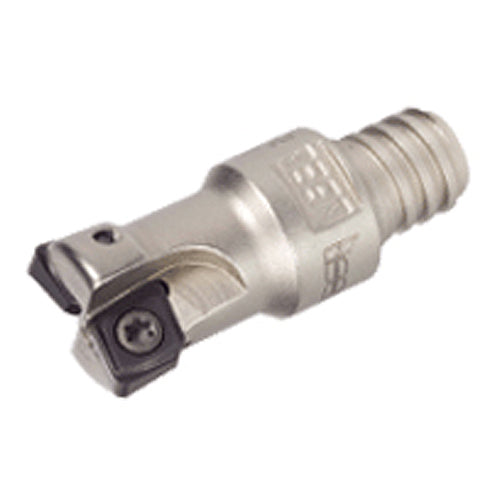

E93CN D.75-3-MMT12-07
Item #: EH3104250
Brand: Iscar
Model #: 3104250
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3/4″ |
| Functional Length (LF) | 1.021″ |
| Cutting Diameter (DC) | 3/4″ |
| Tool Type | Toroidal endmills |
| Cutting Item Count (CICT) | 3 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Depth of Cut Maximum (APMX) | 0.2″ |
| Drive Size (DRVS) | 0.63″ |
| Overall Length (OAL) | 1.56″ |
| Tool Cutting Edge Angle (KAPR) | 93 Degrees |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Undercutting | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.7″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | CNHT 070315 |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Weight of Item (WT) | 0.1 Lbs |
