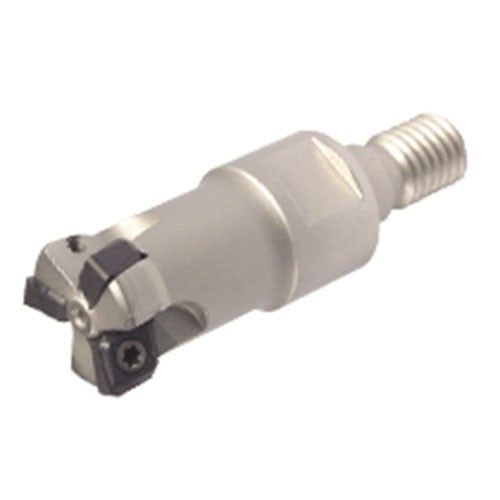

E93CN D25-2-M12-10
Item #: EH3103797
Brand: Iscar
Model #: 3103797
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 25 mm |
| Functional Length (LF) | 35 mm |
| Cutting Diameter (DC) | 25 mm |
| Tool Type | Toroidal endmills |
| Cutting Item Count (CICT) | 2 |
| Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Depth of Cut Maximum (APMX) | 7 mm |
| Drive Size (DRVS) | 17 mm |
| Overall Length (OAL) | 57 mm |
| Tool Cutting Edge Angle (KAPR) | 93 Degrees |
| Ramping Angle Maximum (RMPX) | 7 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Undercutting | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 21 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | ENHT 100430 |
| Connection Code Machine Side (CCMS) | FLEXFIT |
| Weight of Item (WT) | 0.09 Kg |
