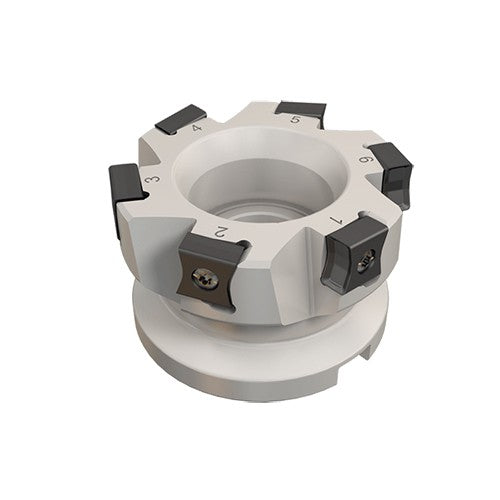

F90LN D125-18-40-R-N11
Item #: EH3102501
Brand: Iscar
Model #: 3102501
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 125 mm |
| Master Insert Identification (MIID) | LNMT 1106PN-N MM |
| Cutting Diameter (DC) | 125 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 18 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 10 mm |
| Application | | Facing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 63 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 95 mm |
| Tool Type | 90° Facemills |
| Arbor Style | B |
