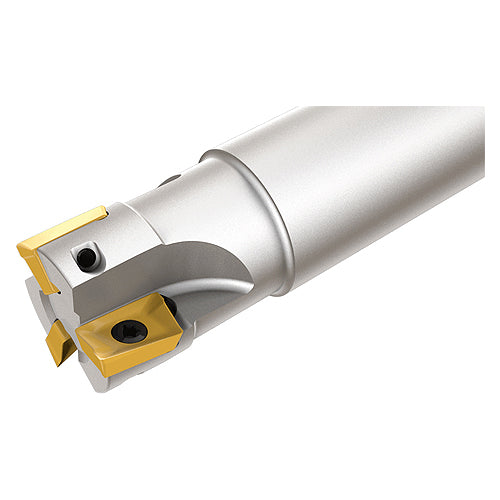

HM90 E90A-D1.50-6-W1.00-C
Item #: EH3101763
Brand: Iscar
Model #: 3101763
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/2″ |
| Head Length (LH) | 1.2″ |
| Cutting Diameter (DC) | 1-1/2″ |
| Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 6 |
| Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Flute Count (NOF) | 6 |
| Overall Length (OAL) | 4″ |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Weldon |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.7 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | APKT 1003PDR-HM |
| Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.94 Lbs |
