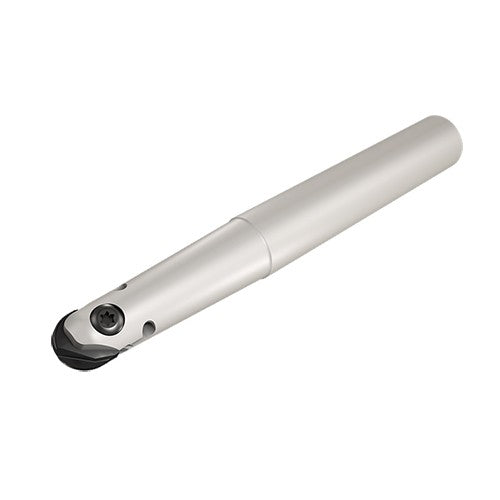

CM D.50-B-W.62
Item #: EH3100553
Brand: Iscar
Model #: 3100553
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1/2″ |
| Weight of Item (WT) | 0.32 Lbs |
| Cutting Diameter (DC) | 1/2″ |
| Head Length (LH) | 1.95″ |
| Cutting Item Count (CICT) | 2 |
| Tool Type | Ball nose endmills |
| Depth of Cut Maximum (APMX) | 0.29″ |
| Corner Radius (RE) | 1/4″ |
| Overall Length (OAL) | 4-1/2″ |
| Body Half Taper Angle (BHTA) | 3 Degrees |
| Shank Type | Weldon |
| Front Type | B |
| Ramping Angle Maximum (RMPX) | 90 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Profiling | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Body Material | Steel |
