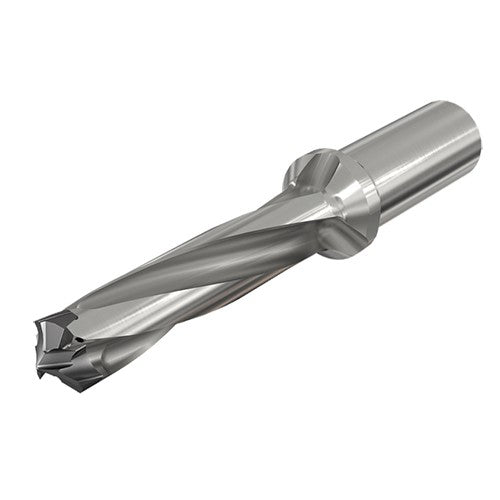

D3N 0571-285-063R-5D
Item #: EH233363577
Brand: Iscar
Model #: 3363577
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.571″ |
| Overall Length (OAL) | 5.919″ |
| Usable Length (LU) | 2.979″ |
| Shank Length (LS) | 1.89″ |
| Length Group | 5D |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | H3P 145 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Point Length (PL) | 0.1221″ |
| Insert Seat Size Code (SSC) | 14 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.571″ |
| Flange Diameter (DF) | 0.79″ |
| Cutting Diameter Maximum (DCX) | 0.587″ |
| Decimal Equivalent | 0.571″ |
| Protruding Length (LPR) | 4.032″ |
