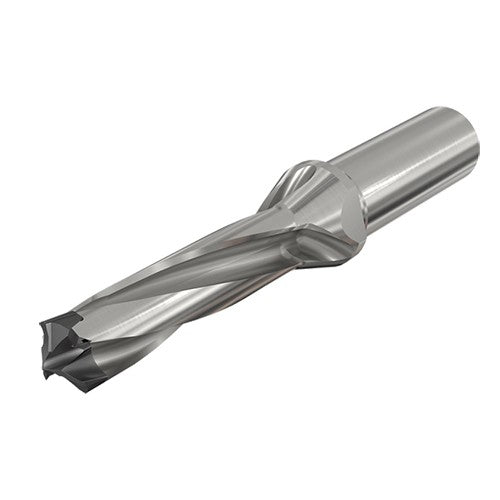

D3N 180-054-25R-3D
Item #: EH233363128
Brand: Iscar
Model #: 3363128
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 18 mm |
| Overall Length (OAL) | 147.36 mm |
| Usable Length (LU) | 57.9 mm |
| Shank Length (LS) | 56 mm |
| Length Group | 3D |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Master Insert Identification (MIID) | H3P 180 |
| Insert Seat Size Code (SSC) | 18 |
| Point Length (PL) | 3.9 mm |
| Cutting Diameter Minimum (DCN) | 18 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 18.9 mm |
| Flange Diameter (DF) | 32 mm |
| Protruding Length (LPR) | 91.36 mm |
