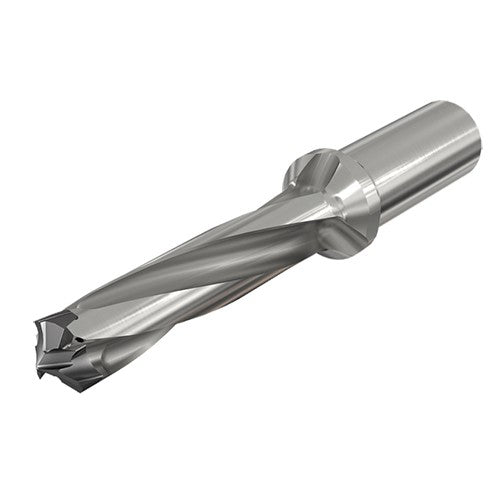

D3N 0630-315-075R-5D
Item #: EH233363072
Brand: Iscar
Model #: 3363072
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.63″ |
| Overall Length (OAL) | 6.428″ |
| Usable Length (LU) | 3.287″ |
| Shank Length (LS) | 1.97″ |
| Length Group | 5D |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | H3P 160 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Point Length (PL) | 0.1354″ |
| Insert Seat Size Code (SSC) | 16 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.63″ |
| Flange Diameter (DF) | 0.98″ |
| Cutting Diameter Maximum (DCX) | 0.665″ |
| Decimal Equivalent | 0.63″ |
| Protruding Length (LPR) | 4.462″ |
