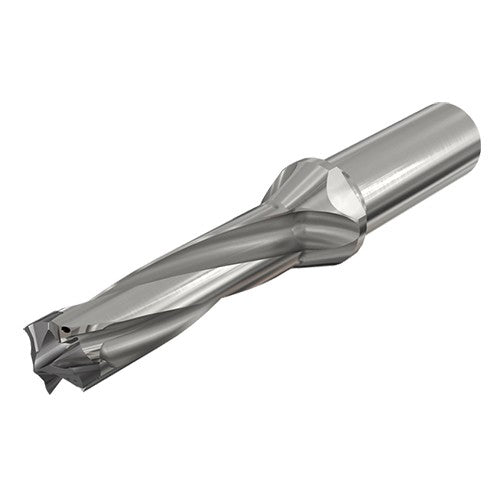

D3N 0709-213-100R-3D
Item #: EH233363045
Brand: Iscar
Model #: 3363045
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.709″ |
| Overall Length (OAL) | 5.802″ |
| Usable Length (LU) | 2.281″ |
| Shank Length (LS) | 2.2″ |
| Length Group | 3D |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | H3P 180-IQ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Point Length (PL) | 0.1536″ |
| Insert Seat Size Code (SSC) | 18 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.709″ |
| Flange Diameter (DF) | 1.26″ |
| Cutting Diameter Maximum (DCX) | 0.744″ |
| Decimal Equivalent | 0.709″ |
| Protruding Length (LPR) | 3.6″ |
