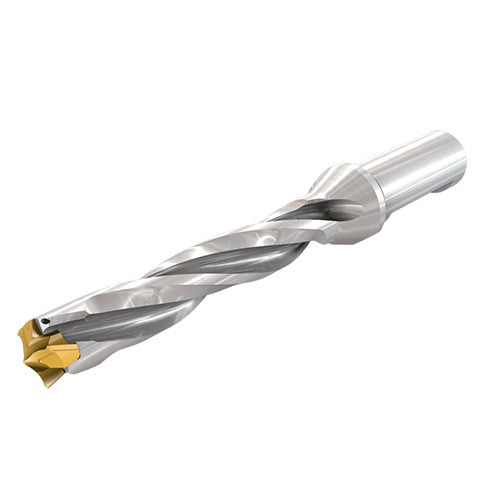

D3N 0630-189-075A-3D
Item #: EH233346846
Brand: Iscar
Model #: 3346846
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.63″ |
| Functional Length (LF) | 3.066″ |
| Usable Length (LU) | 2.027″ |
| Overall Length (OAL) | 5.168″ |
| Length Group | 3D |
| Shank Length (LS) | 1.97″ |
| Application | | Drilling | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Master Insert Identification (MIID) | H3P 160-IQ |
| Insert Seat Size Code (SSC) | 16 |
| Point Length (PL) | 0.1354″ |
| Cutting Diameter Minimum (DCN) | 0.63″ |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.665″ |
| Flange Diameter (DF) | 0.98″ |
| Protruding Length (LPR) | 3.201″ |
| Decimal Equivalent | 0.63″ |
