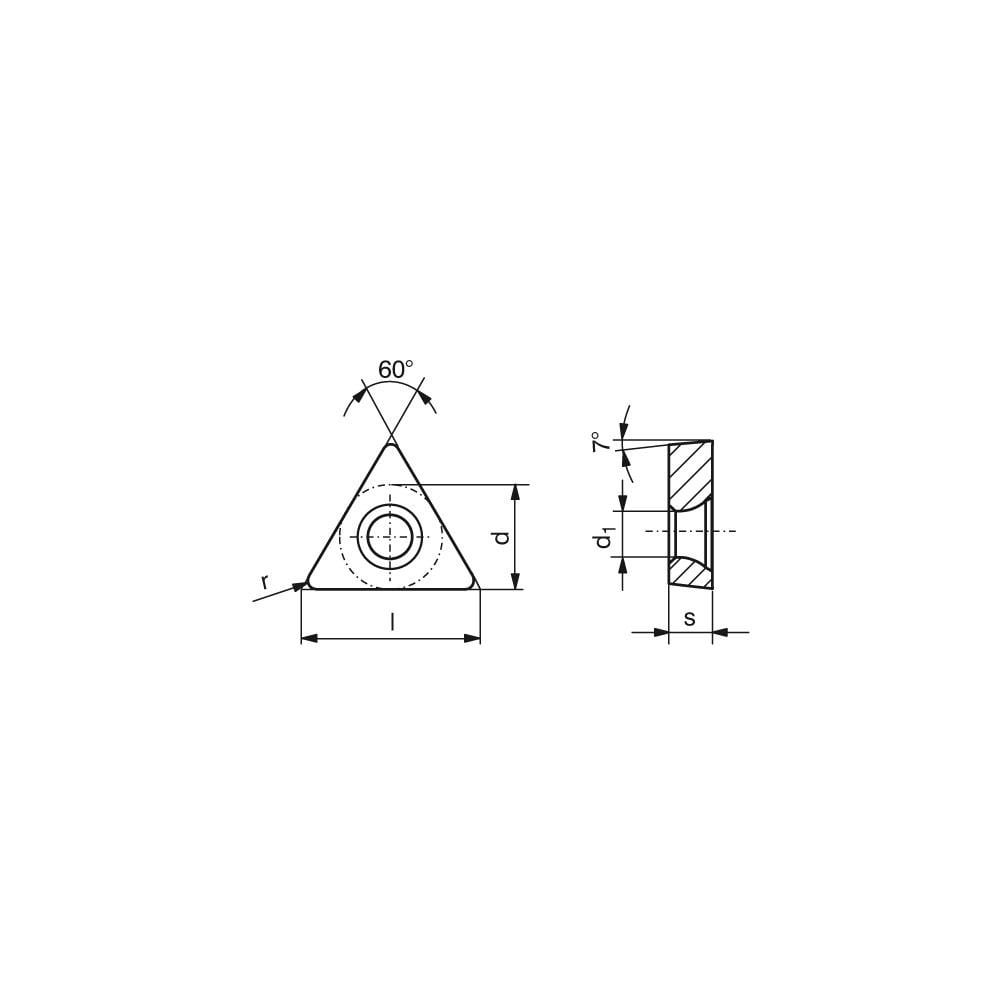

Turning Insert: TCMT2151ENCF55 CTEP110, Cermet
Item #: 26286781
Brand: Ceratizit
Model #: 76266016
Product Specifications
| ANSI Insert Code | TCMT21.51 |
| ISO Insert Code | TCMT110204 |
| Relief Angle | 7 |
| Insert Style | TCMT |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60 |
| Manufacturer Grade | CTEP110 |
| Coating/Finish | TiCN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | TCMT |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Cermet |
| Insert Shape | T - Triangle |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Steel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | TCMT 110204EN-CF55 CTEP110 |
| Chip Breaker | CF55 |
| ANSI Size Code | 21.51 |
| ISO Size Code | 110204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.51 |
