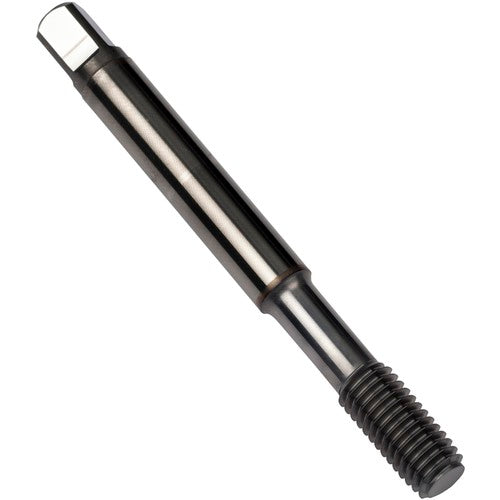

M5x0.8 Threadform Carbide Tap E-code # T215M5
Item #: DH9147174125
Brand: Dormer
Model #: 7174125
| Product Specifications | |
|---|---|
| Tool Type | Form Taps |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Diameter Size (TDZ) | M5 |
| Tapping Prehole Diameter (Pre-hole) | 4.6 mm |
| Thread Pitch (TP) | 0.8 mm |
| Thread Standard | M |
| Overall Length (OAL) | 70 mm |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 16 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Edge Material | HM |
| Flute Count (NOF) | 5 |
| Thread Size | M5 × 0.8 |
