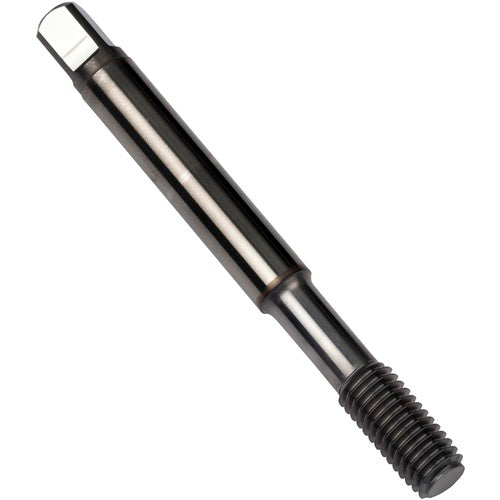

M3x0.5 Threadform Carbide Tap E-code # T215M3
Item #: DH9147174123
Brand: Dormer
Model #: 7174123
| Product Specifications | |
|---|---|
| Tool Type | Form Taps |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Diameter Size (TDZ) | M3 |
| Tapping Prehole Diameter (Pre-hole) | 2.8 mm |
| Thread Pitch (TP) | 0.5 mm |
| Thread Standard | M |
| Overall Length (OAL) | 56 mm |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 10 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm |
| Cutting Edge Material | HM |
| Flute Count (NOF) | 4 |
| Thread Size | M3 × 0.5 |
