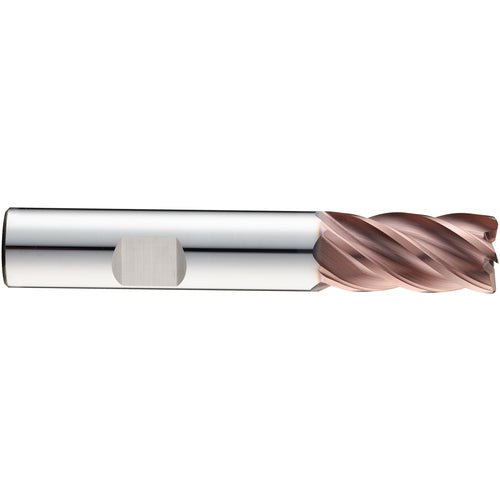

5/8 End Mill 5FL SQ TA WF - Z-CARB HPR 5/8x5/8x1-1/4x3-1/2
Item #: DD9237202
Brand: KYOCERA SGS Precision Tools
Model #: 37202
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Usable Length (LU) | 2-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 3-1/2″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TA |
| Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees |
| Series/List # | Z-CARB HPR |
| Shank Type | Flatted |
