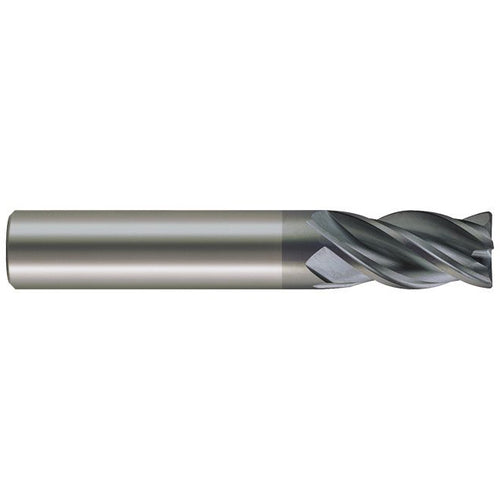

1/16 End Mill 4FL .005R TX - Z-CARB ZAP 1/16x3/16x1-1/2
Item #: DD9236872
Brand: KYOCERA SGS Precision Tools
Model #: 36872
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/16″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3/16″ |
| Usable Length (LU) | 1-5/16″ |
| Overall Length (OAL) | 1-1/2″ |
| Corner Radius (RE) | 0.005″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.0625″ |
