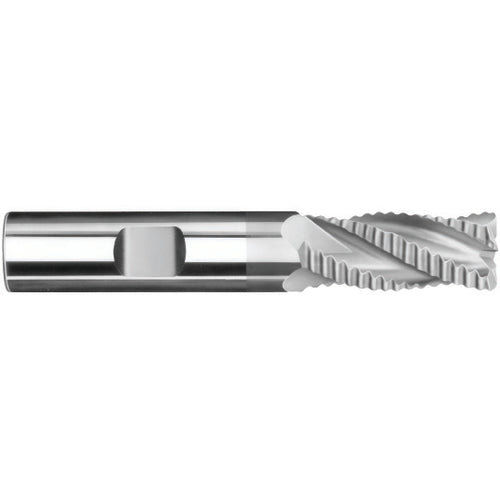

3/4 End Mill 4FL .060R TN WF - SER 61S 3/4x3/4x1-5/8x4
Item #: DD9236125
Brand: KYOCERA SGS Precision Tools
Model #: 36125
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Shank Type | Flatted |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Usable Length (LU) | 2-3/8″ |
| Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.06″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Inch |
