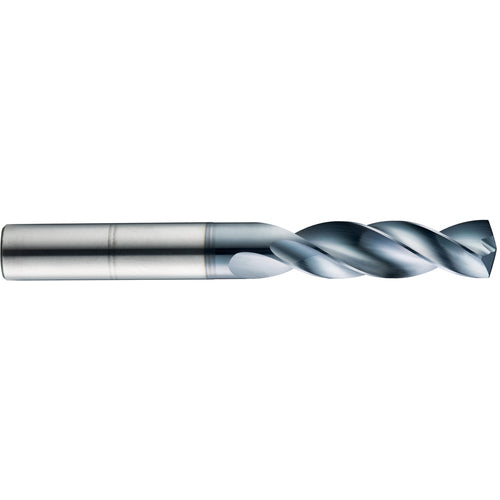

9.8 mm Dia. × 10 mm Shank × 61 mm Flute Length × 103 mm OAL, 5xD, 145°, TA, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9164172
Brand: KYOCERA SGS Precision Tools
Model #: 64172
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.8 mm |
| Tool Type | Drill |
| Decimal Equivalent | 0.3858″ |
| Length Below Shank | 40 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.8 mm |
| Flute Type | Spiral |
| Length Group | 5xD |
| Measurement Type | Metric |
| Coating | TA |
| Series/List # | 135L |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Usable Length (LU) | 49 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 61 mm |
| Point Angle (SIG) | 145 Degrees |
| Overall Length (OAL) | 103 mm |
| Flute Helix Angle (FHA) | 32 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
