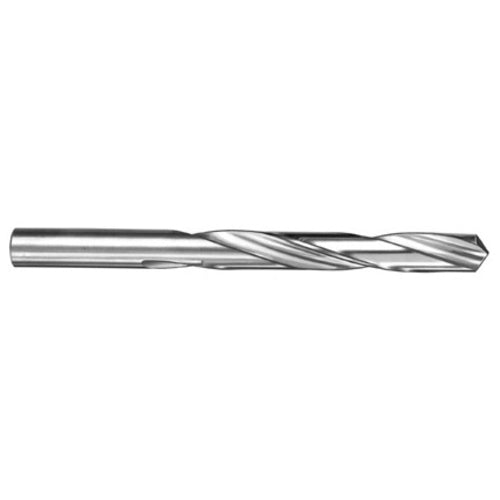

W Dia. x 0.386″ Shank × 2-7/8″ Flute Length × 4-1/2″ OAL, 5xD, 118°, Uncoated, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9151223
Brand: KYOCERA SGS Precision Tools
Model #: 51223
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | W |
| Tool Type | Drill |
| Decimal Equivalent | 0.386″ |
| Length Below Shank | 1-5/8″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | W |
| Flute Type | Spiral |
| Length Group | 5xD |
| Measurement Type | Letter |
| Coating | Uncoated |
| Series/List # | 101 |
| Connection Diameter Machine Side (DCONMS) | 0.386″ |
| Usable Length (LU) | 2.2969″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 2-7/8″ |
| Point Angle (SIG) | 118 Degrees |
| Overall Length (OAL) | 4-1/2″ |
| Flute Helix Angle (FHA) | 20 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
