Brand: Widia / Part #: 5696280
Item #: 02778033
Brand: Widia
Model #: 5696280
Product Specifications
| Minimum Bore Diameter (mm) | 32.000 |
| Maximum Bore Depth (mm) | 75.00 |
| Toolholder Style | DWLNL |
| Tool Material | Steel |
| Shank Diameter (mm) | 25.0000 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 200.0000 |
| Compatible Insert Size Code | WN..080408 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Trigon |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Rake Angle | -12.000 |
| Lead Angle | 95.000 |
| Series | A-DWLN |
| Insert Inscribed Circle (Inch) | 1/2 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Compatible Insert Thickness (mm) | 4.76 |
| Multi-use Tool | Yes |

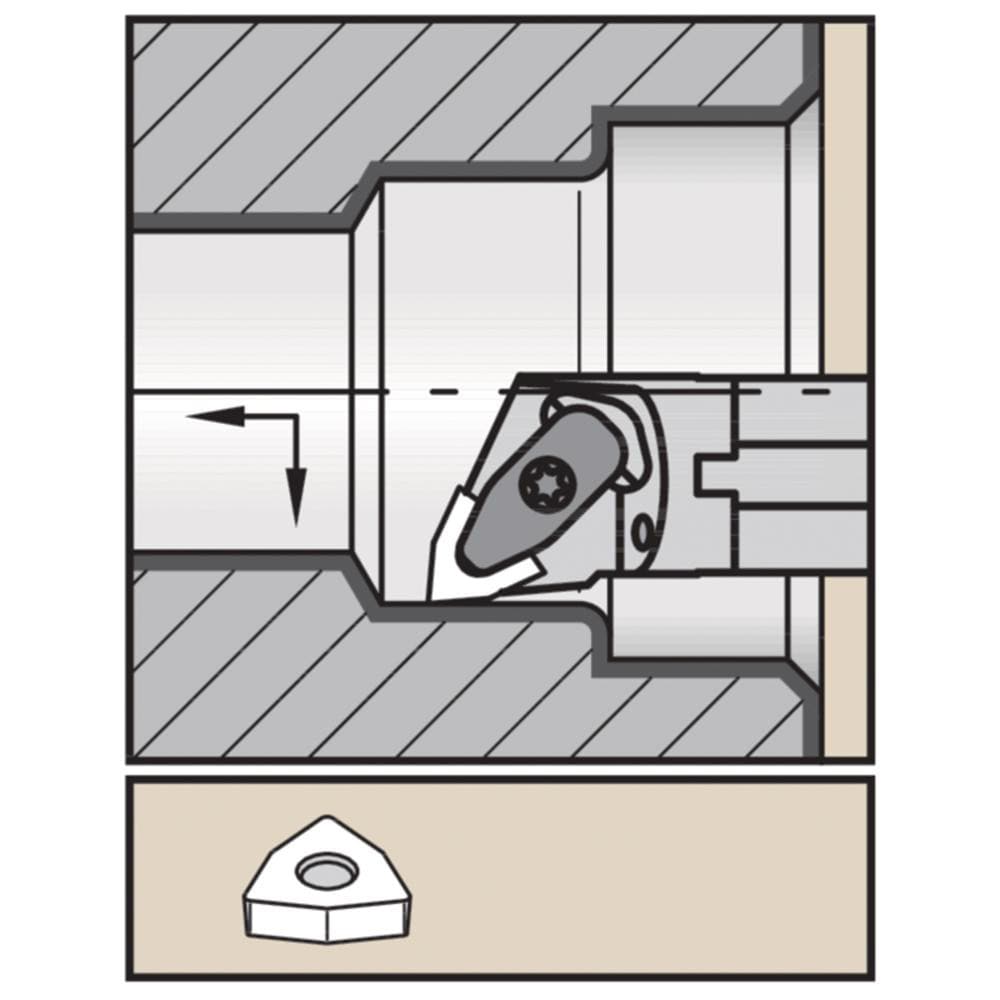

| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 29.50 |
| Center to Cutting Edge (mm) | 17.00 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Hole Diameter (mm) | 6.40 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | A25RDWLNL08KC04 |
| Radial Rake | -5 |
| Coolant Through | Yes |
