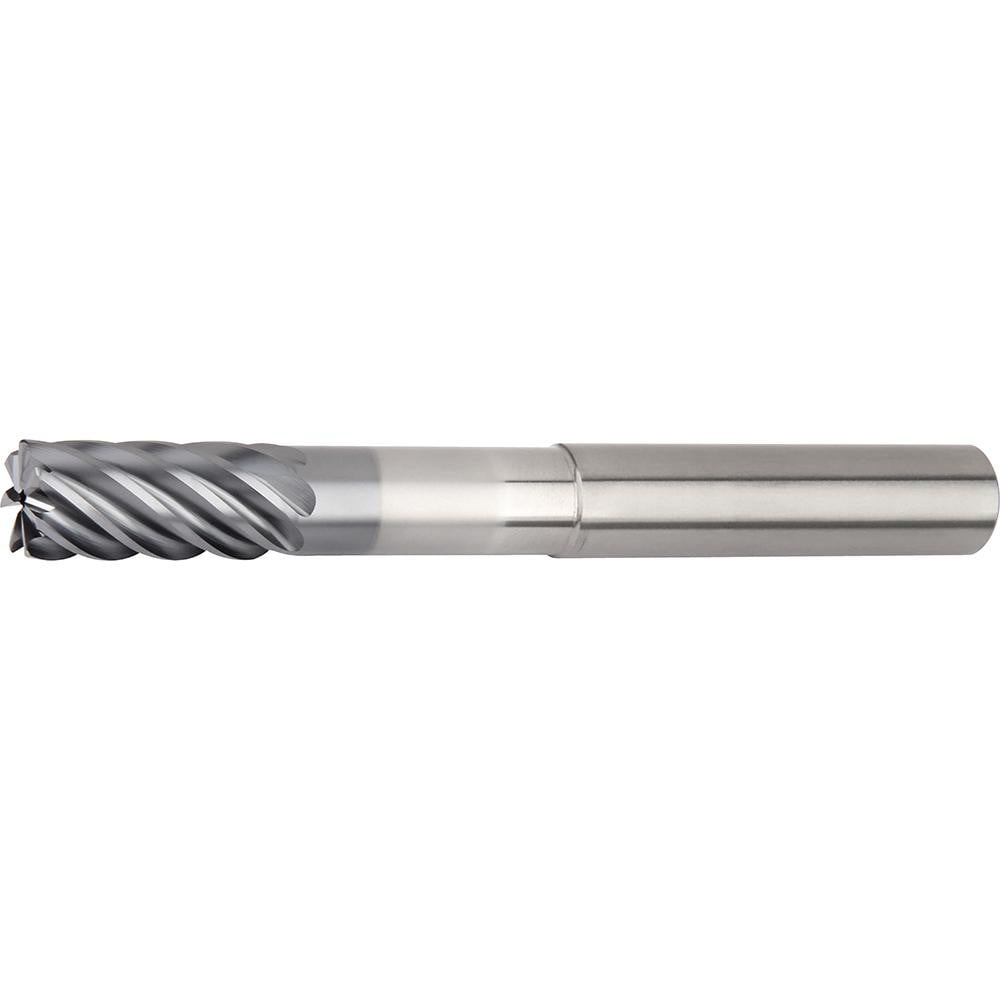

Brand: Widia / Part #: 5971439
Item #: 33966243
Brand: Widia
Model #: 5971439
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 7 |
| Length of Cut (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Material Removal Type | Finishing |
| Neck Diameter (mm) | 0.70 |
| Neck Diameter (Decimal Inch) | 0.7050 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; High Temperature Alloy; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Material Grade | WS15PE |
| Series | 7VNX |
