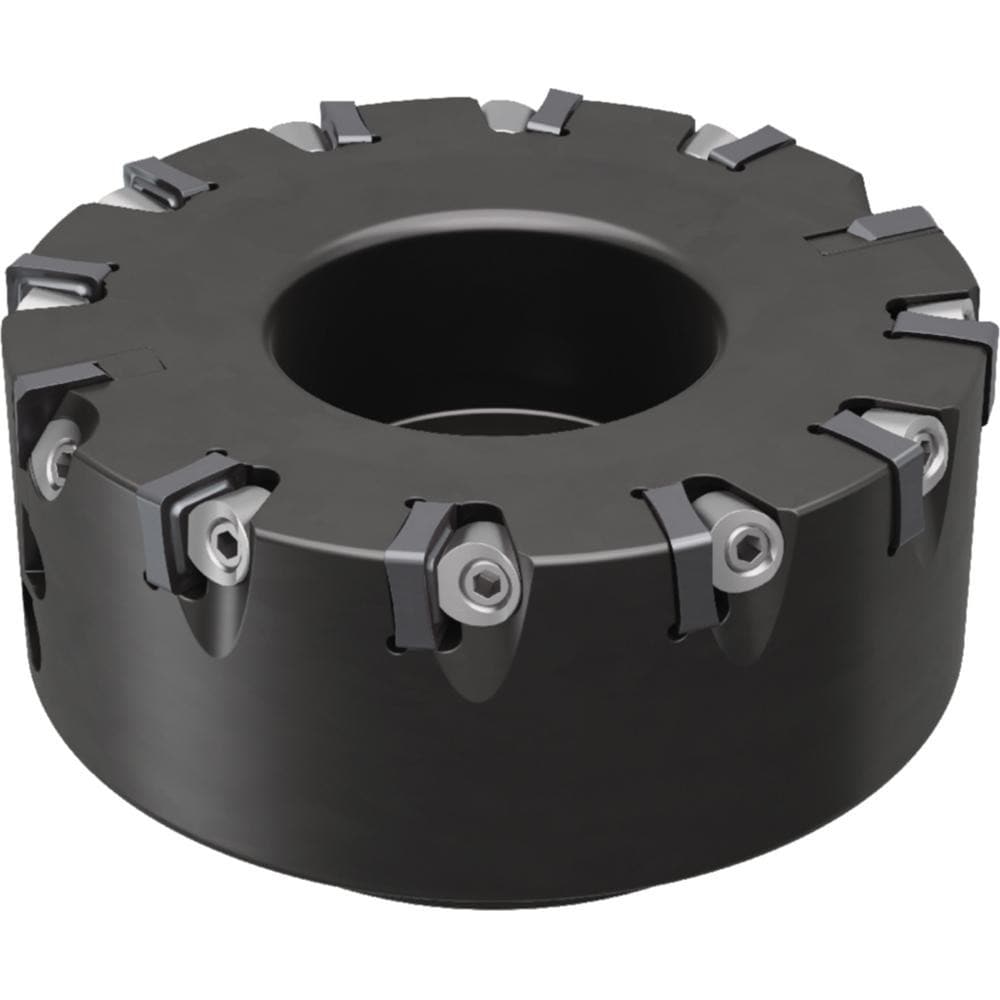

Brand: Widia / Part #: 6381961
Item #: 97474910
Brand: Widia
Model #: 6381961
Product Specifications
| Minimum Cutting Diameter (mm) | 125.00 |
| Maximum Cutting Diameter (mm) | 125.38 |
| Maximum Depth of Cut (mm) | 11.50 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 89.000 |
| Compatible Insert Size Code | SD..1204 |
| Cutter Style | M8090-F |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Rake | Positive |
| Series | M8090-F |
| Hub Diameter (mm) | 89.000 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Maximum Body Diameter (mm) | 122.60 |
| Tool Application | Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Complete Insert Compatibility | SDEN1204PDEN4WC |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 12 |
| Coolant Through | No |
| Number Of Flutes | 12 |
