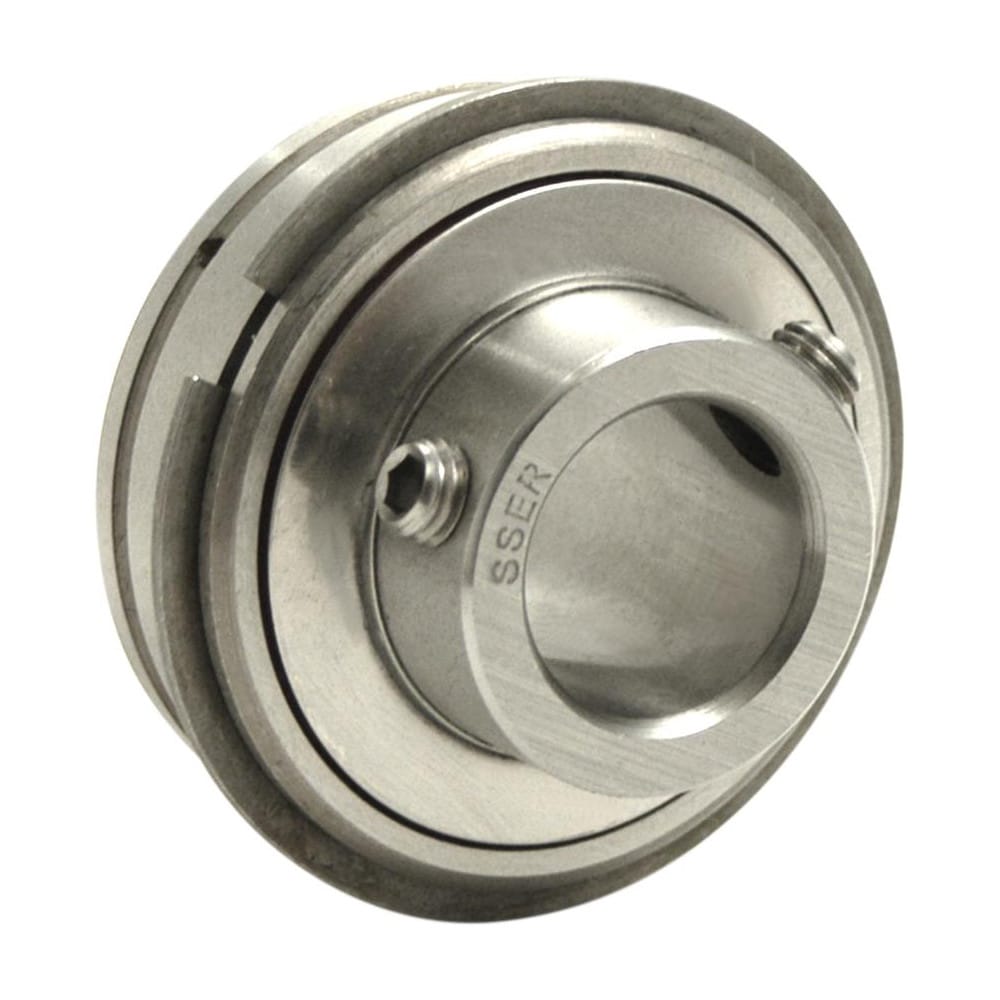

Brand: Tritan / Part #: UCPSS212-39SS
Item #: 96743273
Brand: Tritan
Model #: UCPSS212-39SS
Product Specifications
| Bearing Insert Type | Wide Inner Ring |
| Inside Diameter (Inch) | 2-7/16 |
| Outside Diameter | 137.0000 |
| Bearing Bore Diameter (Decimal Inch) | 2.4375 |
| Bolt Hole (Center-to-center) | 184 mm |
| Base to Bore Centerline (mm) | 69.85 |
| Bolt Size (Decimal Inch) | 0.6250 |
| Housing Material | Stainless Steel |
| Overall Length (mm) | 238.0000 |
| Overall Width | 137.0000 |
| Overall Height (Mm - 5 Decimals) | 65.10000 |
| Lock Type | Set Screw |
| Static Load Capacity | 5800.00 |
| Number Of Bolts | 2 |
| Dynamic Load Capacity (Lb.) | 8900.000 |
| Maximum RPM | 2700.000 |
| Series | UCPSS |
| Distance Between Mounting Hole Centers | 2-9/16 |
| Distance Between Base And Center | 2-3/4 |
| Insert Material | Stainless Steel |
| Maximum Bore Diameter (Inch) | 2-7/16 |
| Flange Height | 5-13/32 |
| Shaft Size (mm) | 61.91 |
| Load Capacity (Lb. - 3 Decimals) | 5800.000 |
| Distance Between Mount Hole Centers (mm) | 184.00 |
