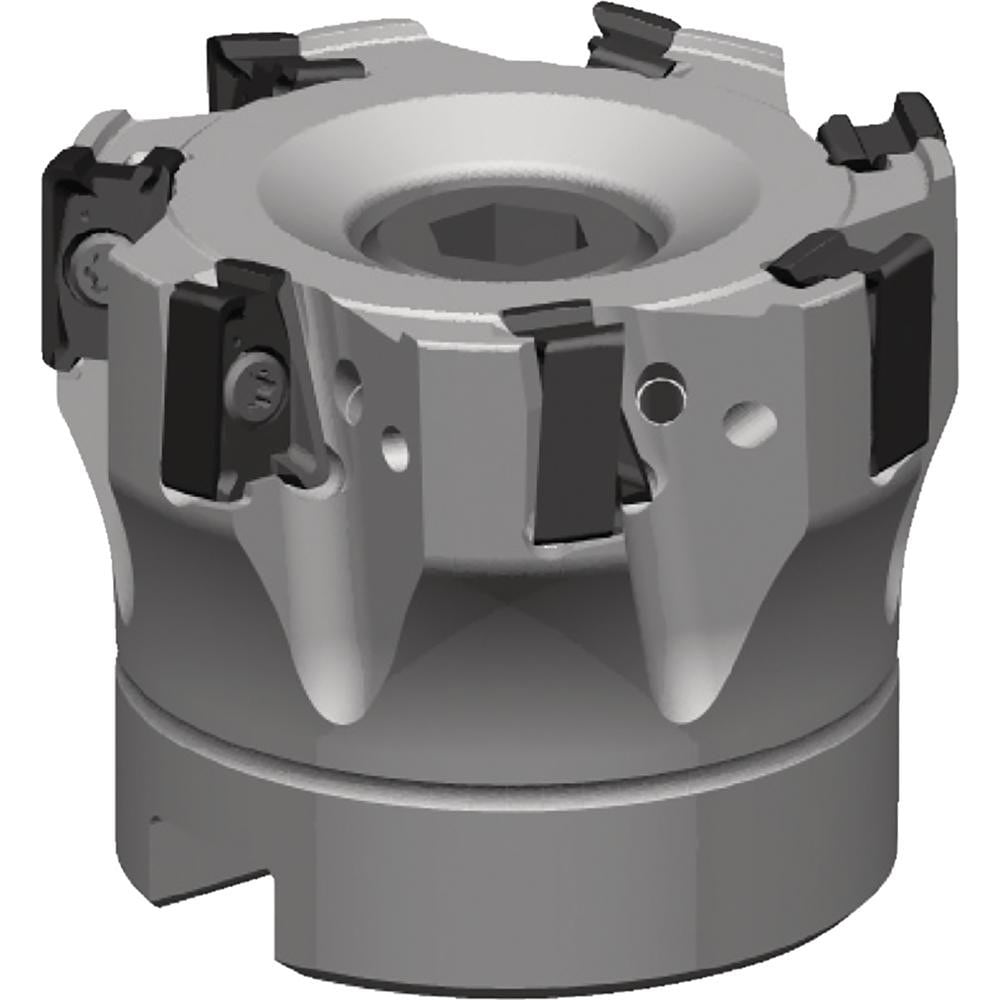

Brand: Widia / Part #: 6425407
Item #: 09947995
Brand: Widia
Model #: 6425407
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XNGU1004.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Axial); Negative (Radial) |
| Rake Angle | -13.300 |
| Series | VSM490 |
| Maximum Body Diameter (Decimal Inch) | 1.4210 |
| Overall Height (Decimal Inch) | 1.5770 |
| Keyway Width (mm) | 8.19 |
| Hub Diameter (Decimal Inch) | 1.4210 |
| Maximum RPM | 26200.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM490D150Z06S075XN10 |
| Coolant Hole Diameter (Decimal Inch) | 0.0790 |
| Complete Insert Compatibility | XNGU100408SRMM |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM490D150Z06S075XN10 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
