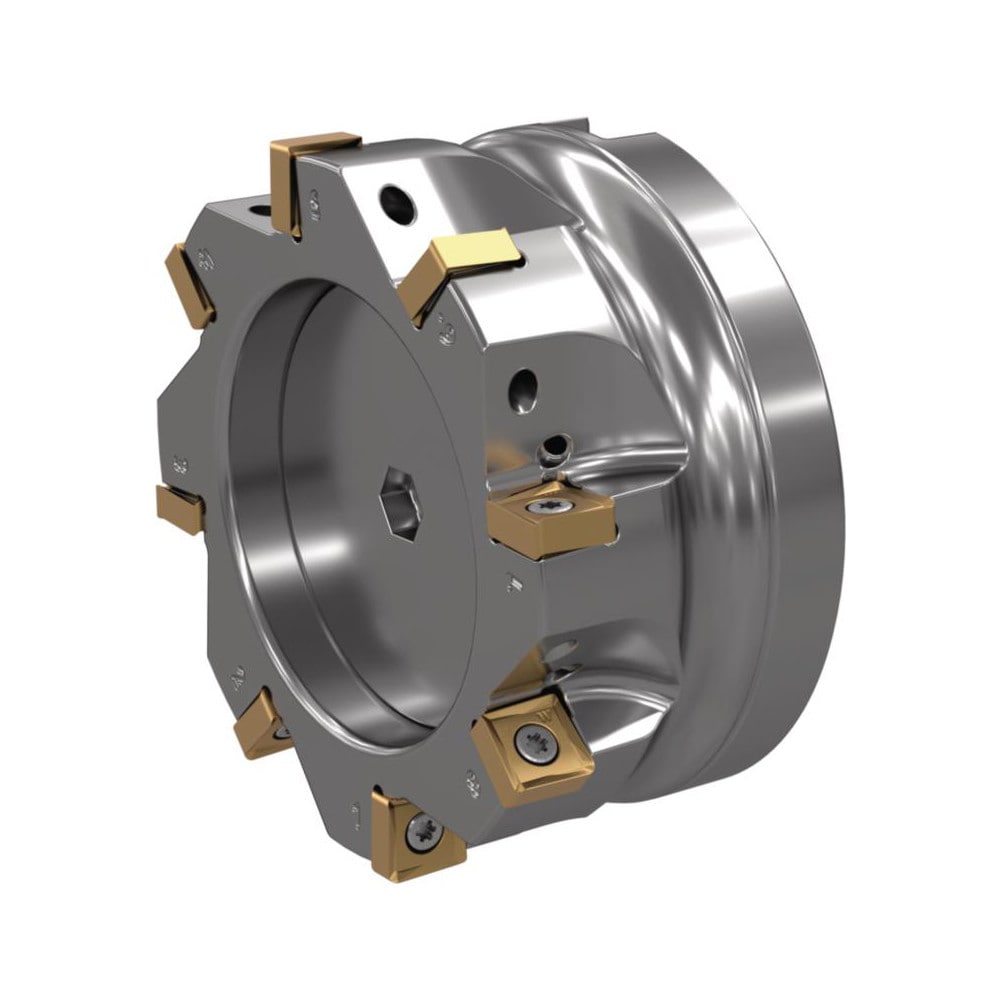

Brand: Widia / Part #: 6425493
Item #: 09787938
Brand: Widia
Model #: 6425493
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 8.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 8.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3872 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Compatible Insert Size Code | SNHX1204.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | -13.000 |
| Series | VSM890 |
| Maximum Body Diameter (Decimal Inch) | 7.8332 |
| Overall Height (Decimal Inch) | 2.3800 |
| Keyway Width (mm) | 25.78 |
| Hub Diameter (Decimal Inch) | 5.1181 |
| Maximum RPM | 10700.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM890D800Z22S250SN12 |
| Complete Insert Compatibility | SNHX120408PNERMM |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM890D800Z22S250SN12 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 22 |
| Number Of Flutes | 22 |
