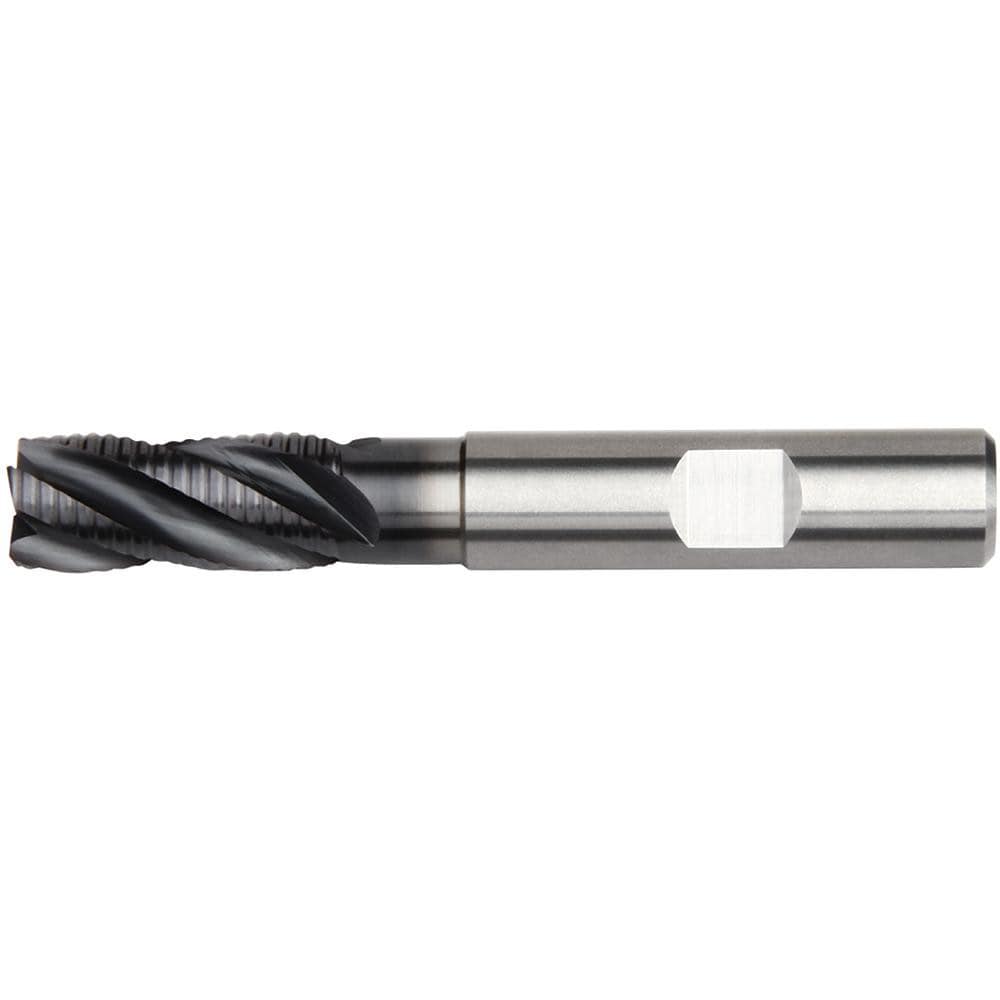

Brand: Widia / Part #: 3474597
Item #: 33984659
Brand: Widia
Model #: 3474597
Product Specifications
| Mill Diameter (mm) | 25.00 |
| Chamfer Width (mm) | 0.50 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Single Or Double End | Single |
| Overall Length (mm) | 121.00 |
| Length of Cut (mm) | 45.00 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Chipbreaker | Yes |
| End Type | Single |
| Chamfer Angle | 45 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | Yes |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Neck Diameter (Decimal Inch) | 24.0000 |
| Reach Length (mm) | 65.00 |
| Minimum Helix Angle | 30.00 |
| Maximum Helix Angle | 30.00 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Hard Material; Stainless Steel; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; H; M |
| Material Grade | WP15PE |
| Series | 49N6 |
