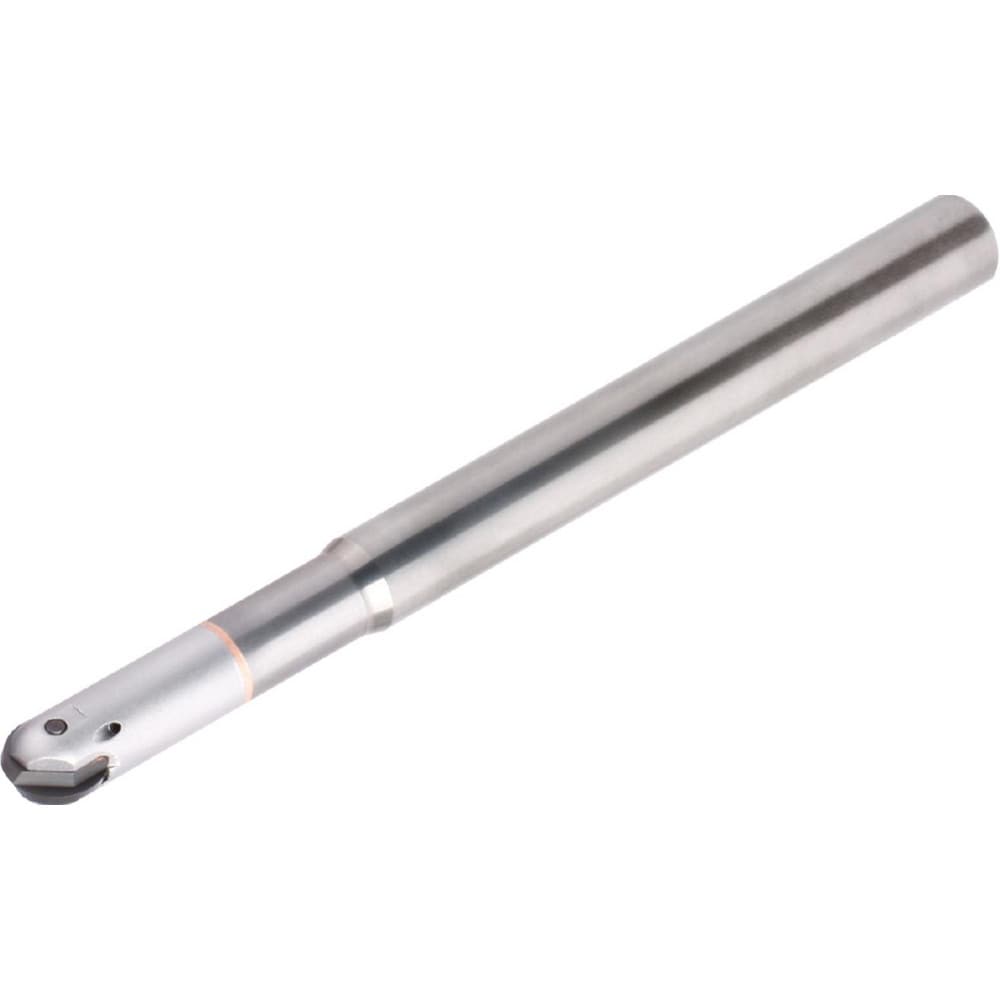

Brand: Widia / Part #: 2639253
Item #: 97213136
Brand: Widia
Model #: 2639253
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Tool Material | Solid Carbide |
| Maximum Depth of Cut (Inch) | 3/16 |
| Maximum Depth of Cut (Decimal Inch) | 0.1875 |
| Maximum Ramping Angle | 0 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Compatible Insert Style | M270B.. |
| Compatible Insert Size Code | 0375 |
| Toolholder Style | M270 |
| Tapered Neck | No |
| Overall Length (Decimal Inch) | 5.5500 |
| Series | M270 |
| Head Length (Decimal Inch) | 1.8000 |
| Maximum RPM | 57000 |
| Tool Application | Profile Milling; Semi-Finishing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number Of Inserts | 1 |
