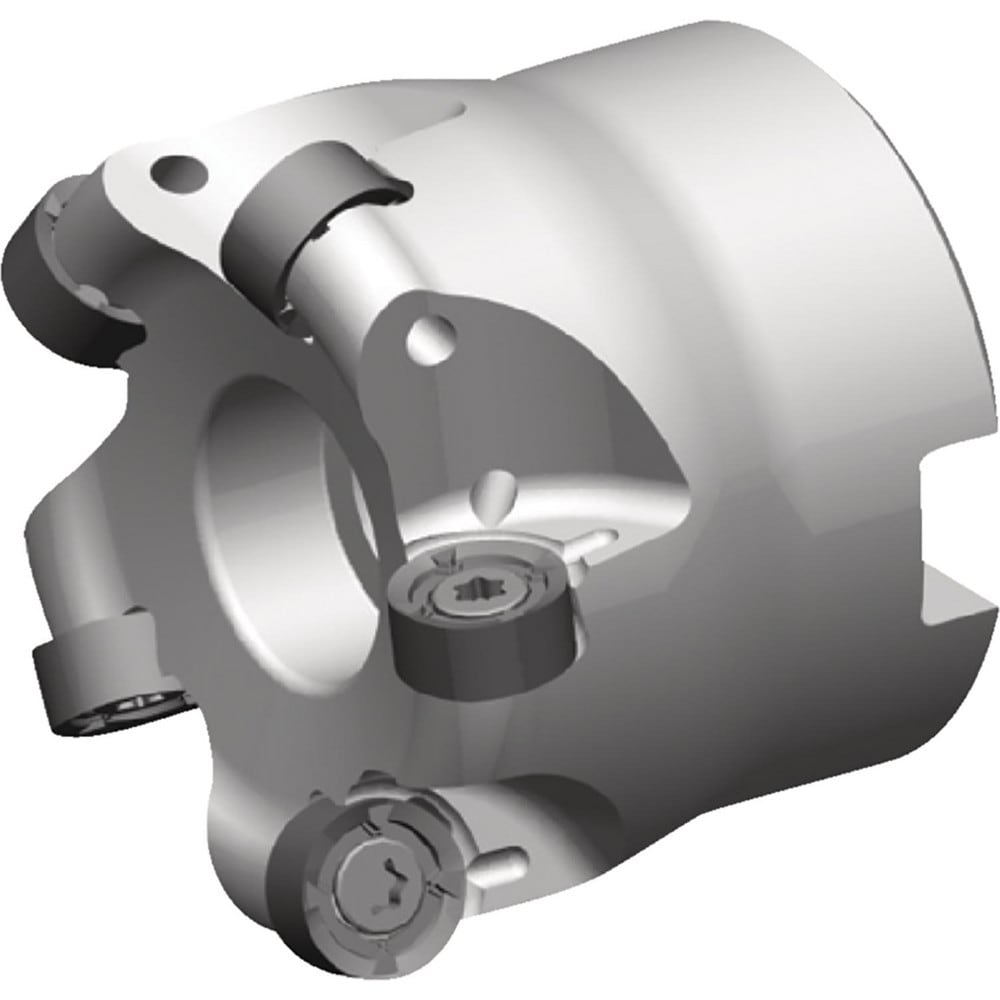

Brand: Widia / Part #: 5210306
Item #: 97209068
Brand: Widia
Model #: 5210306
Product Specifications
| Minimum Cutting Diameter (mm) | 30.00 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 4.96 |
| Arbor Hole Diameter (mm) | 16.00 |
| Compatible Insert Size Code | RN_J10T3M0_M_ |
| Maximum Ramping Angle | 0.40 degree |
| Cutter Style | M200 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M200 |
| Hub Diameter (Decimal Inch) | 1.4961 |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Maximum RPM | 43200 |
| Tool Application | Profiling; Pocketing; Milling; Slotting; Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
