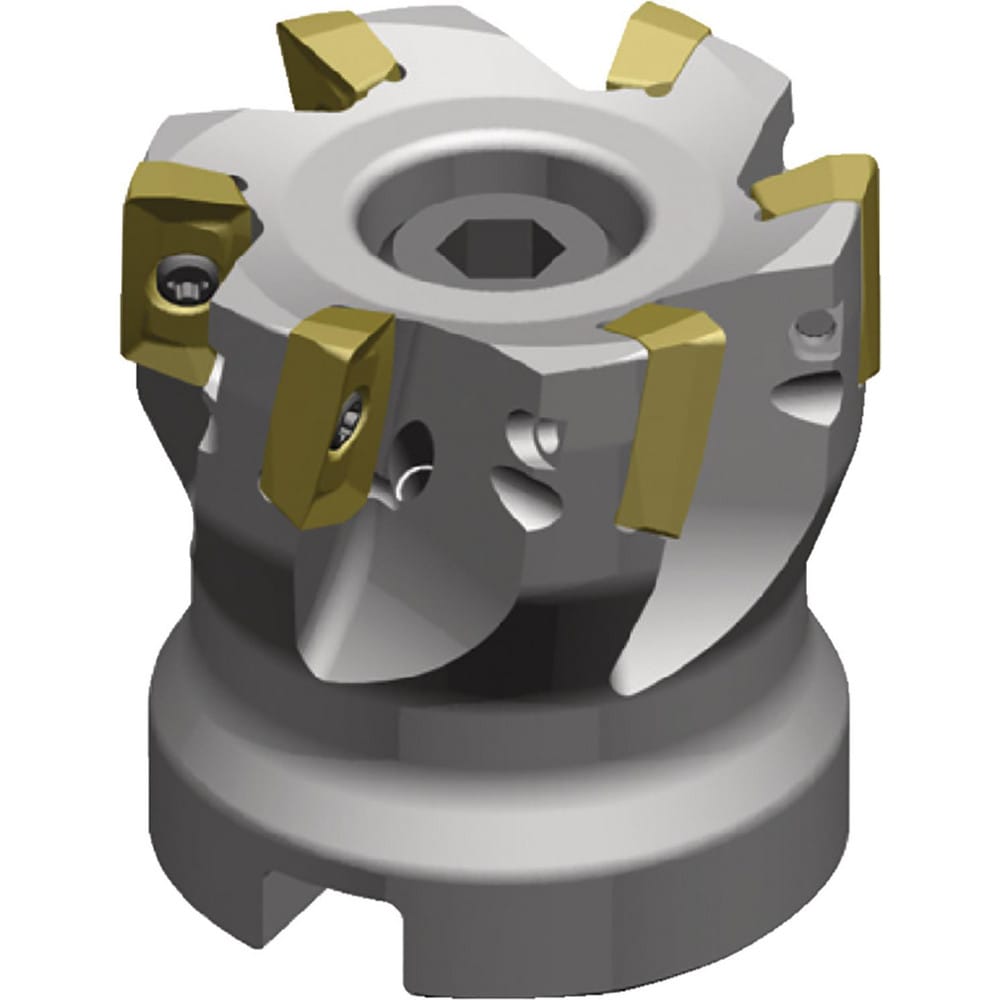

Brand: Widia / Part #: 5416396
Item #: 09790197
Brand: Widia
Model #: 5416396
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4460 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | XD.T1104.. |
| Maximum Ramping Angle | 1.2 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | -3.730 |
| Series | VSM11 |
| Maximum Body Diameter (Decimal Inch) | 2.9270 |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (mm) | 9.78 |
| Hub Diameter (Decimal Inch) | 2.1900 |
| Maximum RPM | 15700.000 |
| Tool Application | Milling; Slotting; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM11D300Z08S100XD11 |
| Coolant Hole Diameter (Decimal Inch) | 0.0980 |
| Complete Insert Compatibility | XD_T110408PD_R__ |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM11D300Z08S100XD11 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
