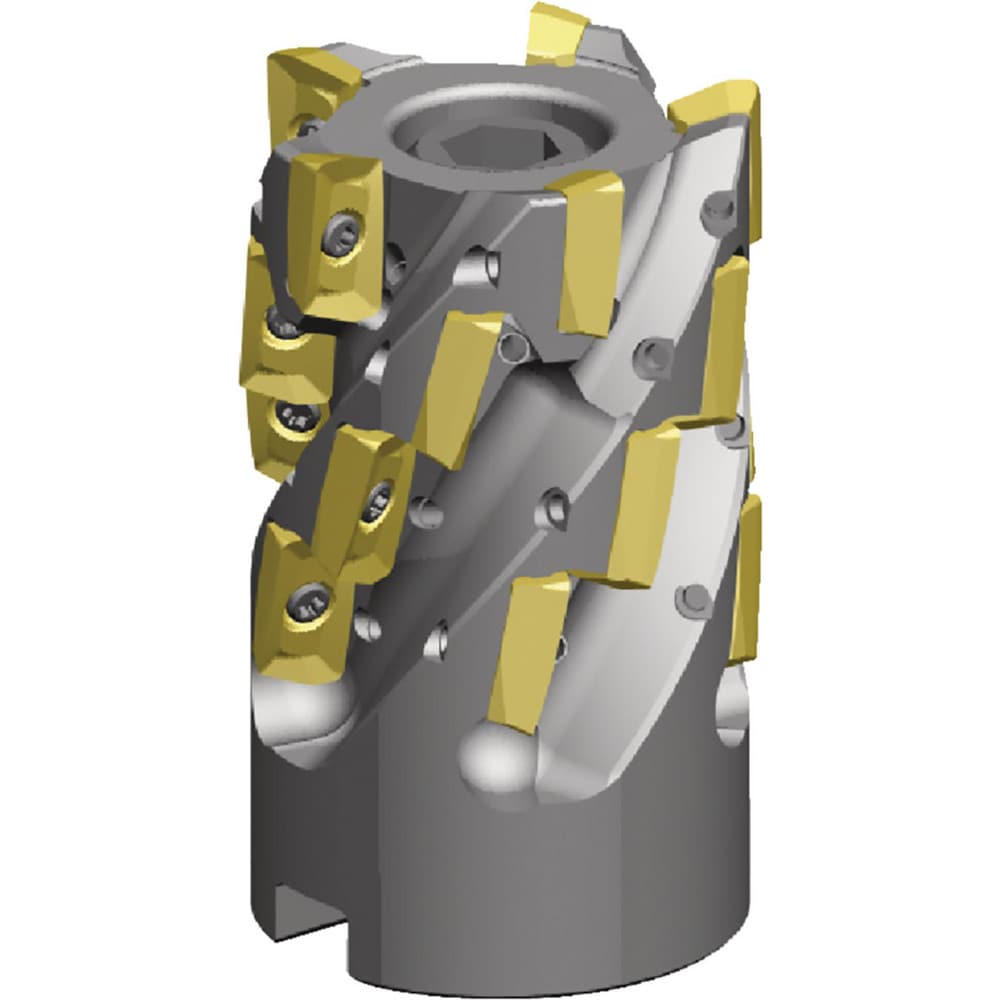

Brand: Widia / Part #: 6425438
Item #: 09910845
Brand: Widia
Model #: 6425438
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 2.0300 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XD_T110408PD_R__ |
| Maximum Ramping Angle | 1.8 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | VSM11H |
| Maximum Body Diameter (Decimal Inch) | 1.9067 |
| Overall Height (Decimal Inch) | 2.7500 |
| Keyway Width (mm) | 8.19 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Maximum RPM | 19700.000 |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM11H200Z04S075XD11 |
| Complete Insert Compatibility | XD_T110408PD_R__ |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM11H200Z04S075XD11 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 20 |
| Number Of Flutes | 4 |
