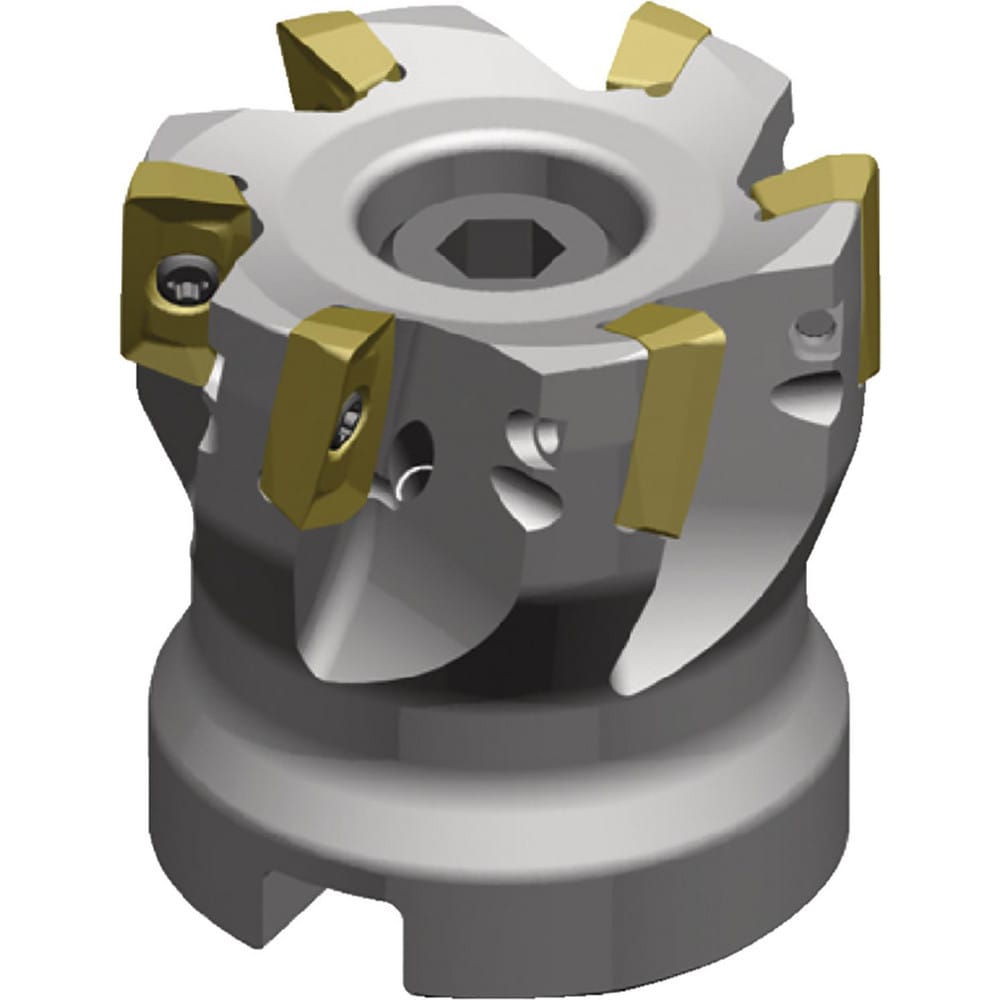

Brand: Widia / Part #: 5416341
Item #: 09784331
Brand: Widia
Model #: 5416341
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 11.32 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | XD.T1104.. |
| Maximum Ramping Angle | 1.5 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | -4.250 |
| Series | VSM11 |
| Maximum Body Diameter (mm) | 61.21 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Keyway Width (mm) | 10.48 |
| Hub Diameter (mm) | 44.000 |
| Maximum RPM | 17500.000 |
| Tool Application | Milling; Slotting; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM11D063Z09S022XD11 |
| Coolant Hole Diameter (Decimal Inch) | 0.0980 |
| Complete Insert Compatibility | XD_T110408PD_R__ |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM11D063Z09S022XD11 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 9 |
