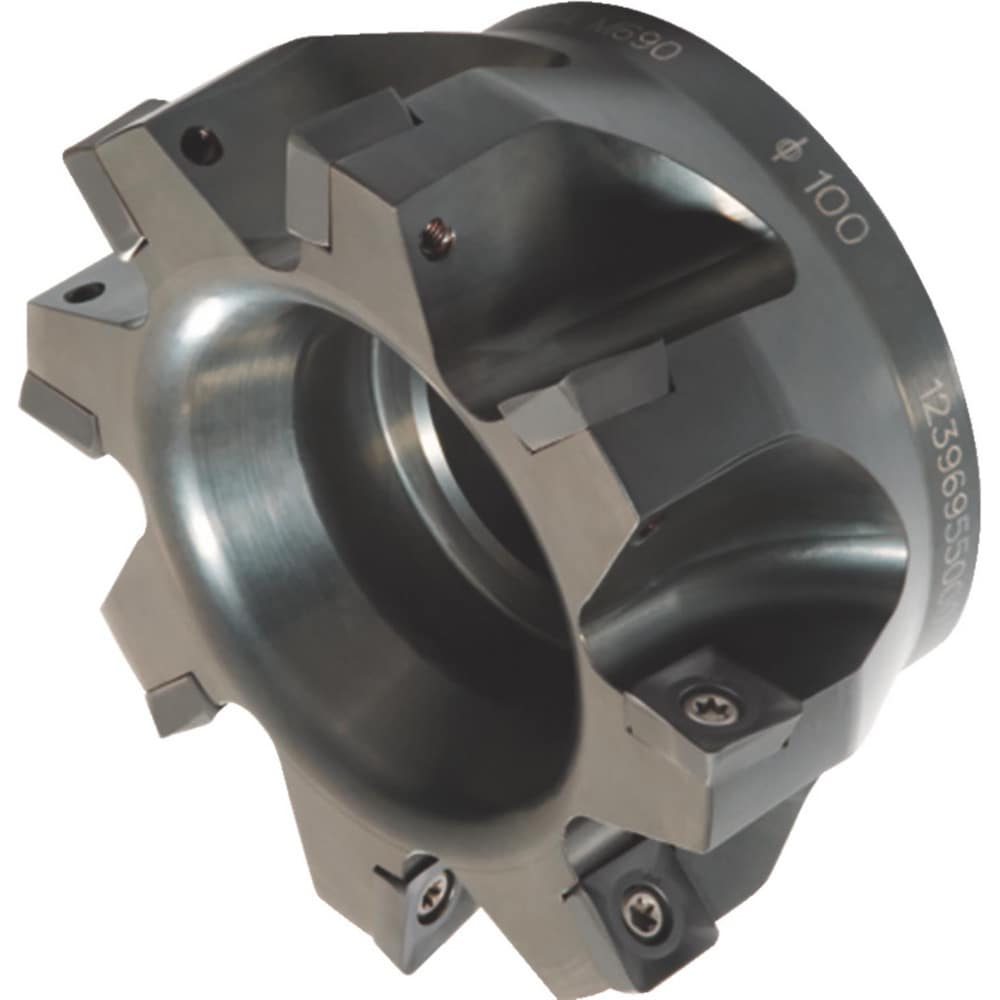

Brand: Widia / Part #: 2646785
Item #: 09785585
Brand: Widia
Model #: 2646785
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | SDMT1204.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | M690 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | M690 |
| Overall Height (Decimal Inch) | 1.5000 |
| Keyway Width (mm) | 8.19 |
| Hub Diameter (Decimal Inch) | 1.7000 |
| Maximum RPM | 22400.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | M690D200Z05S075SD12 |
| Complete Insert Compatibility | SDMT1204.. |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M690D200Z05S075SD12 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
