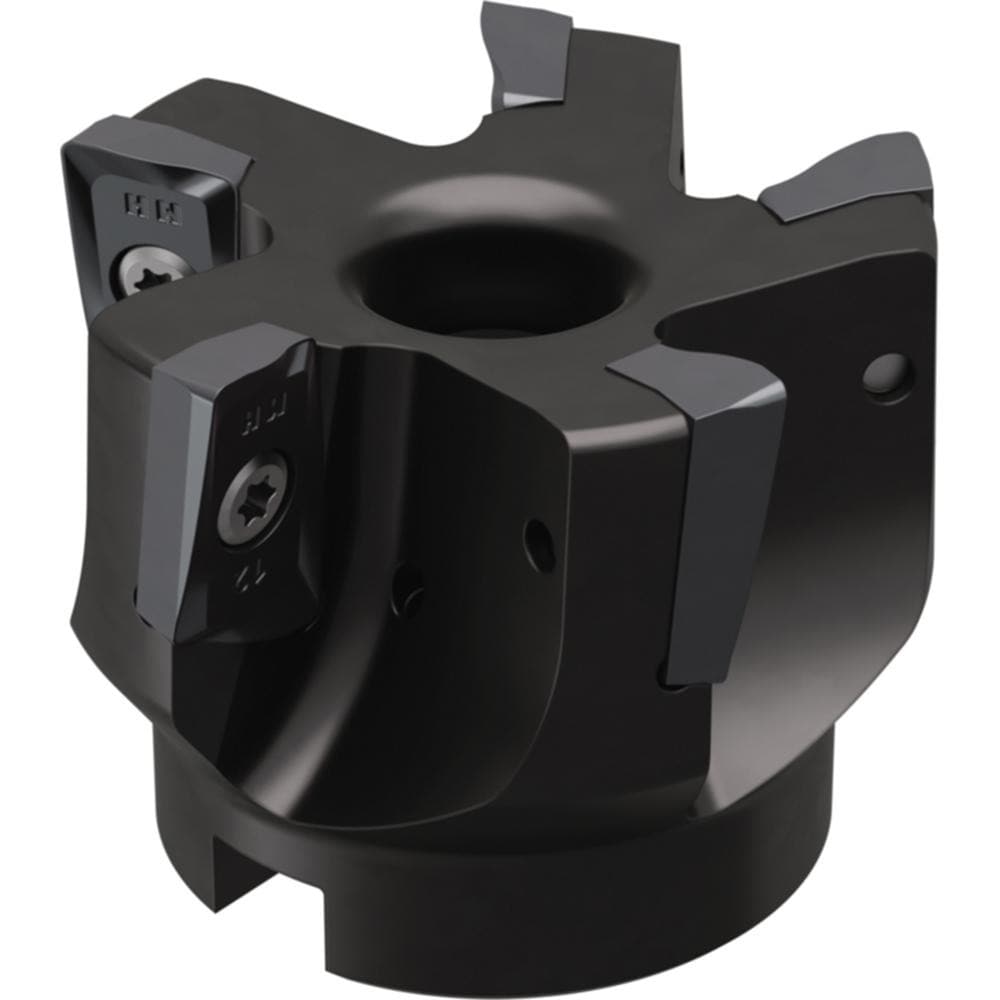

Brand: Widia / Part #: 6425385
Item #: 09967118
Brand: Widia
Model #: 6425385
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 20.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Compatible Insert Size Code | XPHT2206.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | -6.000 |
| Series | VSM22 |
| Maximum Body Diameter (mm) | 76.90 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Keyway Width (mm) | 12.48 |
| Hub Diameter (mm) | 60.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM22D080Z06S27XP22 |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Complete Insert Compatibility | XPHT220612PDSRMH |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM22D080Z06S27XP22 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
