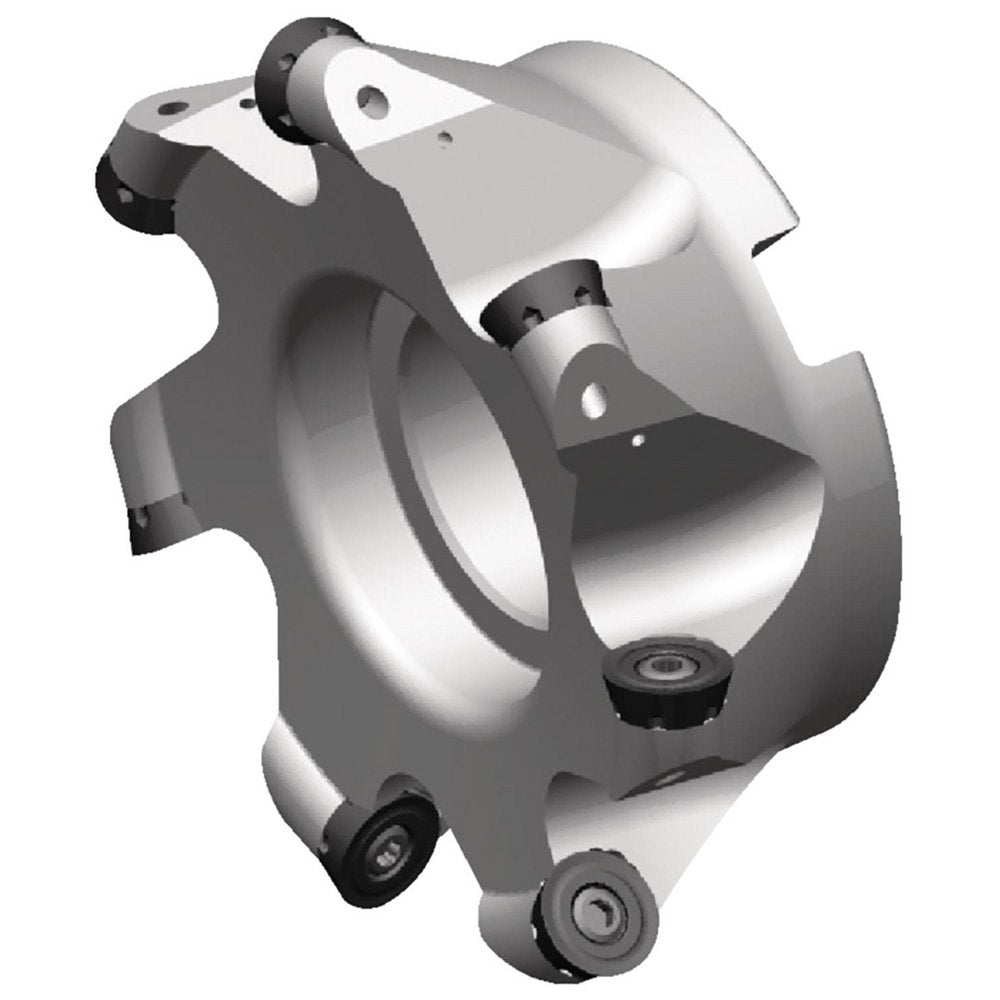

Brand: Widia / Part #: 2021347
Item #: 85351328
Brand: Widia
Model #: 2021347
Product Specifications
| Minimum Cutting Diameter (mm) | 34.00 |
| Cutting Diameter (mm) | 50.00 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | RD__1605 |
| Maximum Ramping Angle | 10.25 |
| Cutter Style | M100 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M100 |
| Hub Diameter (mm) | 60.000 |
| Keyway Width (mm) | 10.46 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Maximum RPM | 13000.000 |
| Tool Application | Facing; Profiling; Helical Interpolation; Pocketing; Shouldering; Slotting; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
