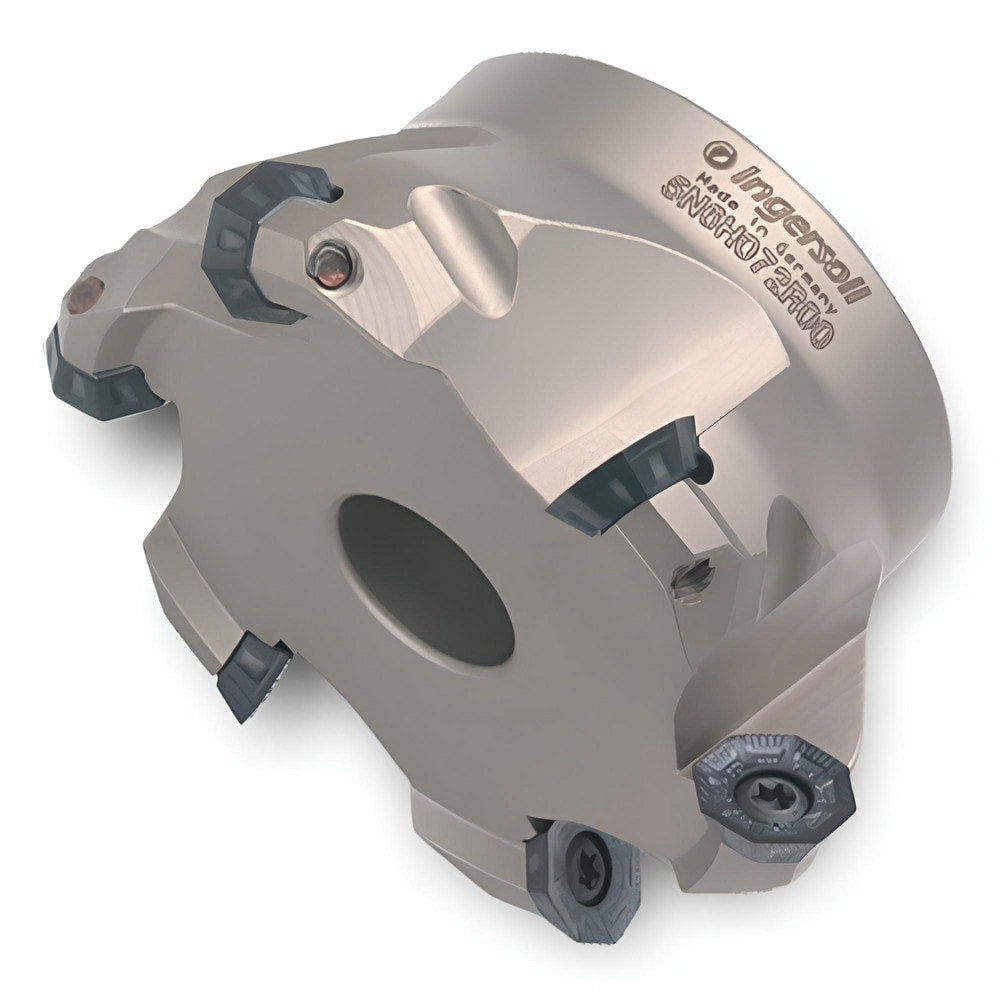

Brand: Ingersoll Cutting Tools / Part #: 3019946
Item #: 31707078
Brand: Ingersoll Cutting Tools
Model #: 3019946
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (mm) | 58.17 |
| Maximum Cutting Diameter (Decimal Inch) | 2.2900 |
| Maximum Depth of Cut (Decimal Inch) | 0.1300 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | 1404; 05T3 |
| Cutter Style | 5N6H |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | 5N6H |
| Keyway Width (Decimal Inch) | 0.3120 |
| Keyway Width (Inch) | 5/16 |
| Overall Height (Mm - 5 Decimals) | 39.88000 |
| Overall Height (Decimal Inch) | 1.5700 |
| Pitch Type | Close |
| Tool Application | Chamfering; Facing; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | RFMT1404; OFxT05T3 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 5N6H-20R00 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | No |
| Number Of Flutes | 5 |
