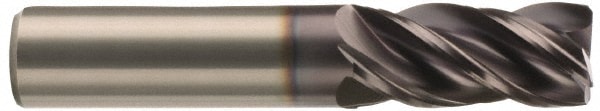

Brand: Widia / Part #: 2837388
Item #: 87739835
Brand: Widia
Model #: 2837388
Product Specifications
| Mill Diameter (Inch) | 1 in |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (Inch) | 6 in |
| Length of Cut (Inch) | 3 in |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Flute Direction | Right Hand |
| Helix Angle | 38 |
| Chipbreaker | No |
| Chamfer Angle | 45 ? |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 1 in |
| Reach Length (Inch) | 3 |
| Maximum Helix Angle | 38 ? |
| Mill Diameter Tolerance | +0.000000 to -0.002000 in |
| Shank Diameter Tolerance | +0.00000/-0.00051 in |
| Primary Workpiece Material | Hard Material; Stainless Steel; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; H; M |
| Material Grade | TiAlN-LW |
| Series | 4V05 |
| Coating Classification | PVD |
| Helix Style | Medium |
| Manufacturers Catalog Number | TF4V2525008 |
