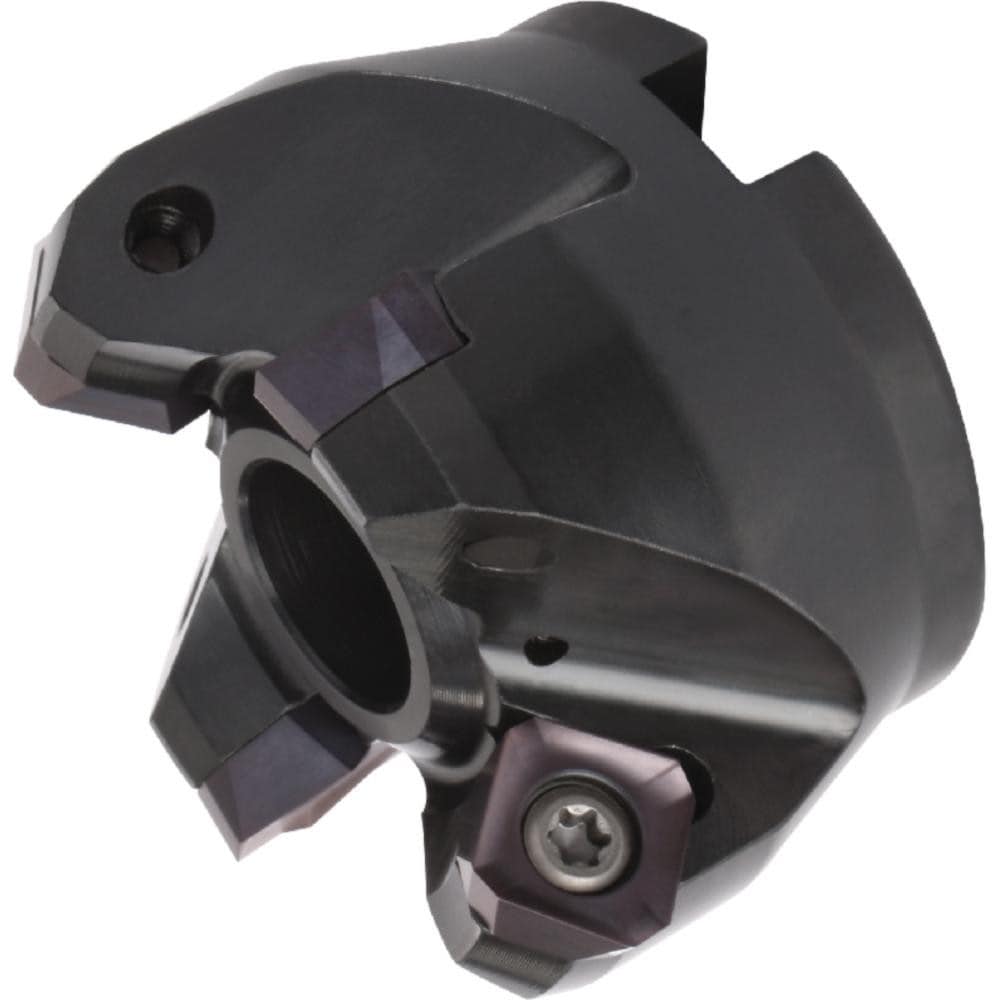

Brand: Widia / Part #: 2646749
Item #: 97475263
Brand: Widia
Model #: 2646749
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Minimum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.5600 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | SN.T1205.. |
| Cutter Style | M660 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | M660 |
| Hub Diameter (Decimal Inch) | 2.3000 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Maximum RPM | 11000.000 |
| Tool Application | Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Complete Insert Compatibility | SN.T1205.. |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
| Number Of Flutes | 6 |
