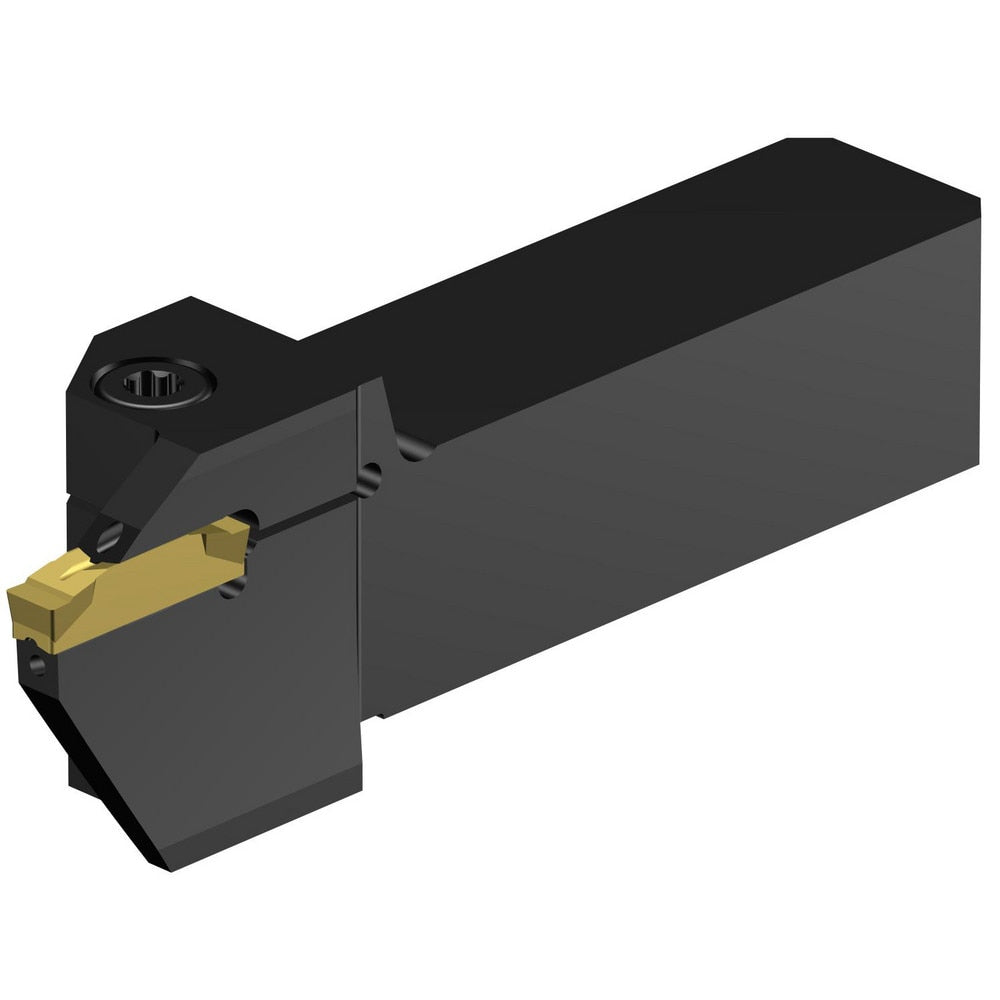

Brand: Sandvik Coromant / Part #: 8273674
Item #: 67620575
Brand: Sandvik Coromant
Model #: 8273674
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | K |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Maximum Depth of Cut (mm) | 18.00 |
| Minimum Groove Width (mm) | 220.00 |
| Maximum Groove Width (mm) | 500.00 |
| Toolholder Style | C2A-QS..RF..B..CB |
| Maximum Groove Width (Decimal Inch) | 19.6850 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | K2 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | CoroCut? 2 |
| Overall Length (mm) | 122.1000 |
| Overall Length (Decimal Inch) | 4.8071 |
| Cutting Tool Application | Face Grooving |
| Back of Bar to Cutting Edge (mm) | 4.81 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.8071 |
| Center to Cutting Edge (Decimal Inch) | 1.0039 |
| Center to Cutting Edge (mm) | 25.50 |
| Minimum Hole Diameter (Decimal Inch) | 8.6614 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Height (mm) | 25.000 |
| Head Length (Decimal Inch) | 2.5046 |
| Head Length (mm) | 63.61 |
| Maximum Bore Depth (Decimal Inch) | 2.5043 |
| Manufacturers Catalog Number | C2A-QS25-RFK18B-220CB |
| Toolholder Material | Steel |
| Complete Insert Compatibility | C2I-K2-0600- |
| Coolant Through | Yes |
| Maximum Bore Depth (mm) | 63.61 |
