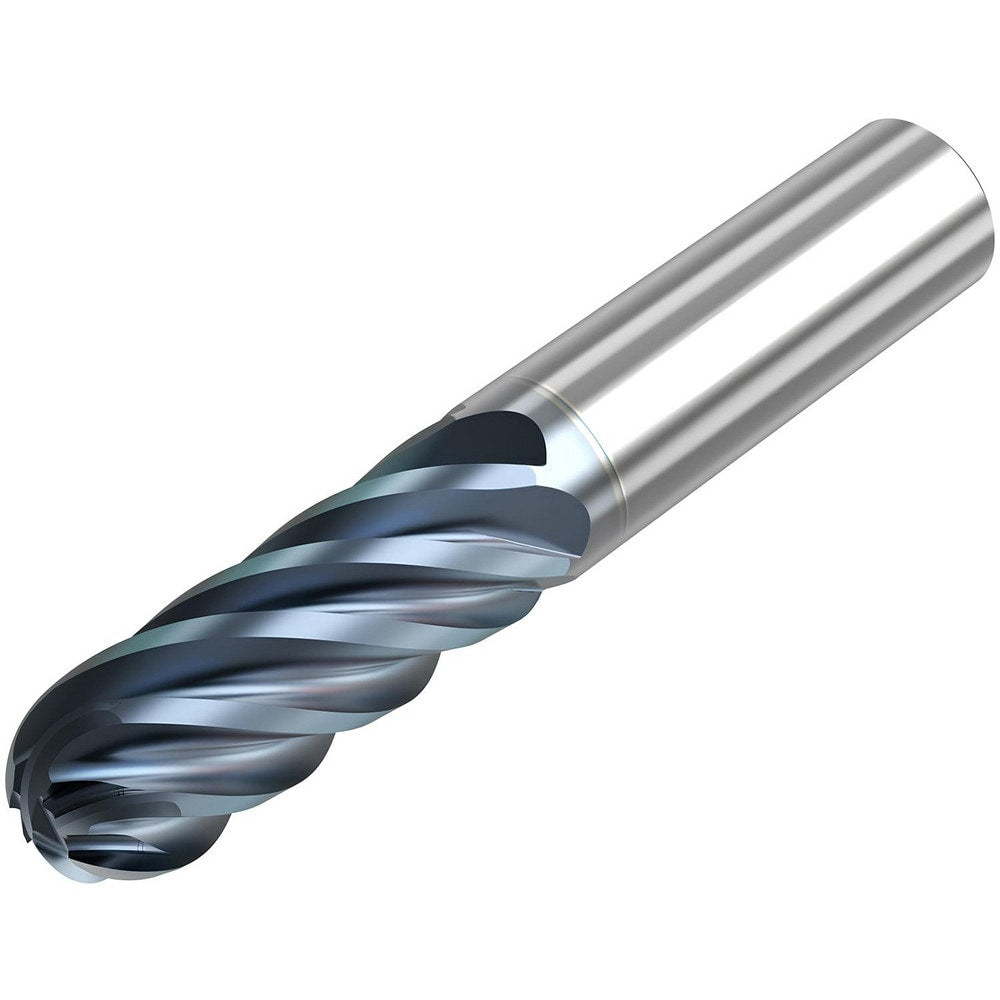

Brand: Niagara Cutter / Part #: 10115775
Item #: 98760119
Brand: Niagara Cutter
Model #: 10115775
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 2-1/2 |
| End Mill Material | Solid Carbide |
| Coating/Finish | HTA |
| Chipbreaker | No |
| Number Of Flutes | 6 |
| End Type | Ball End |
| Extended Reach | No |
| Helix Angle | 38 |
| Undercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Length Type | Long |
| Helix Style | Medium |
| Material Removal Type | Roughing |
| Shank Diameter (Inch) | 3/4 |
| Nose Radius (Decimal Inch) | 0.3750 |
| Overall Length (Inch) | 5 |
| Mill Diameter Tolerance | -0.0020/+0.0000 in |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
| Primary Workpiece Material Code | S; M |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | SB638 |
| Flute Type | Variable Index |
| TIR Maximum (Decimal Inch) | 0.0005 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Cylindrical |
| Pitch | Variable |
| Coolant Through | No |
