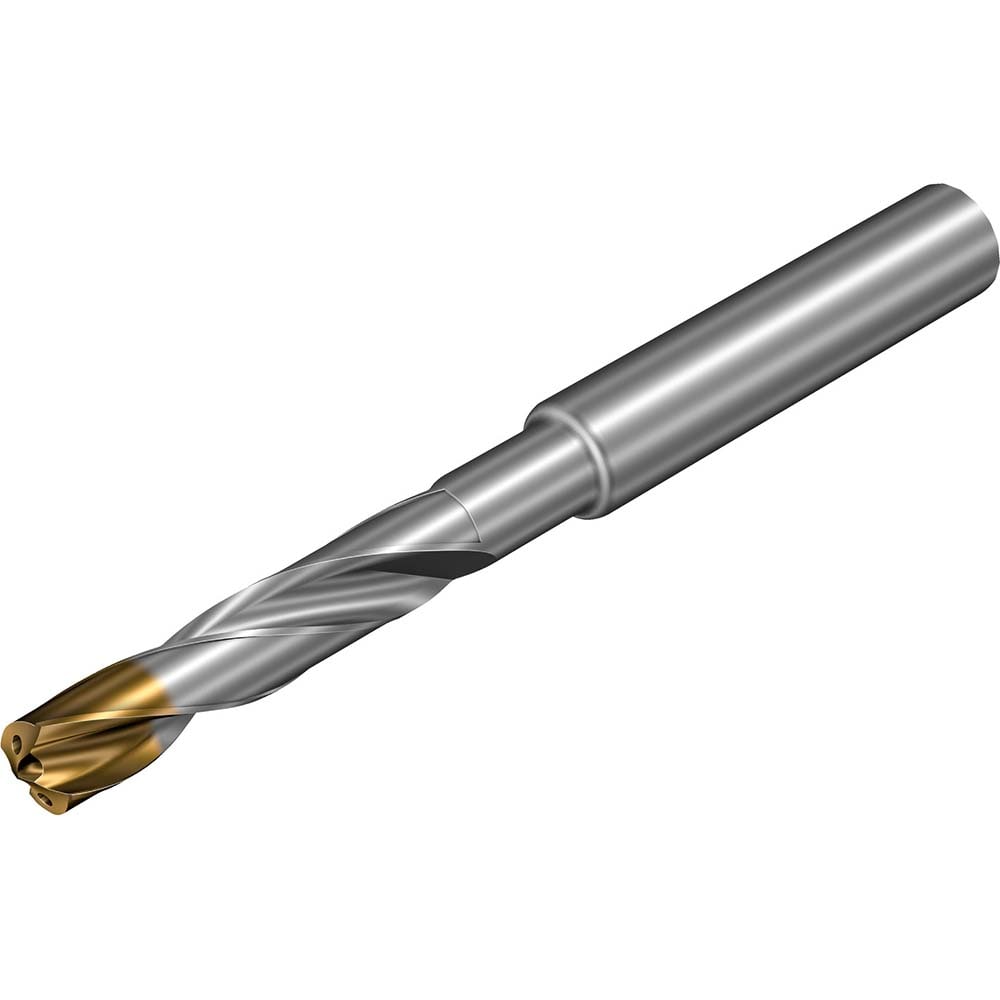

Brand: Sandvik Coromant / Part #: 8360151
Item #: 67621904
Brand: Sandvik Coromant
Model #: 8360151
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6630 |
| Drill Bit Size (mm) | 17.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiSiN; TiAlSiN |
| Drill Point Angle | 140 |
| Spiral Type | Right Hand |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Cylindrical Shank |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 123.0000 |
| Overall Length (Inch) | 4.8425 |
| Shank Diameter (mm) | 18.0000 |
| Series | CoroDrill? 860 |
| Maximum Drilling Depth (Decimal Inch) | 2.0472 |
| Maximum Drilling Depth (mm) | 52.00 |
| Drill Point Length (mm) | 3.09 |
| Drill Point Length (Decimal Inch) | 0.1218 |
| Flute Length (Decimal Inch) | 2.8740 |
| Flute Length (mm) | 73.00 |
| Drill Bit Grade | X1BM |
| Specification Number | DIN 6535HA |
| Specification Designation | DIN |
